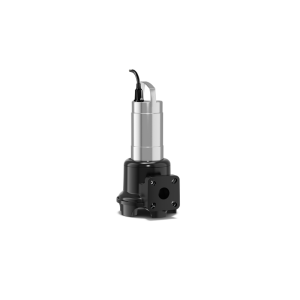

Wilo Rexa UNI V05/T08-540 / 0.75kW Submersible Sewage Pump
19248
The Wilo Rexa UNI V05/T08-540 is a submersible sewage pump from the Wilo Rexa UNI range with a 0.75 kW motor rating. Submersible pump for stationary and portable wet well installation in intermittent operation.
Features
- Excellent reliability due to corrosion-free hydraulics for universal application and various fluids
- Easy installation thanks to its light weight, integrated capacitor at the single-phase motor and flange with integrated fixation
- Optimum efficiency and operational safety thanks to its vortex hydraulics and smooth surfaces
- Quick maintenance facilitated by direct access to the sealing chamber and pump housing
- Long maintenance interval thanks to its double seal and a high volume sealing chamber
Specifications
| Parameter | Value |
|---|---|
| Brand | Wilo |
| Item code | 6082123 |
| Model | Rexa UNI V05/T08-540 |
| Series | Wilo Rexa UNI |
| Type | submersible sewage pump |
| port | DN 50 |
| Connection cable length (m) | 10 |
| Rated power P2 (kW) | 0.75 |
| Mains connection | 3~400 V, 50 Hz |
| Maximum operating pressure PN | 1 bar |
| Hydraulics type | Vortex impeller |
| Free ball passage of the hydraulics | 44 mm |
| Max. immersion depth | 7 m |
| Min. fluid temperature Tmin | 3 °C |
| Max. fluid temperature Tmax | 40 °C |
| Min. ambient temperature Tmin | 3 °C |
| Max. ambient temperature Tmax | 40 °C |
| Max. fluid temperature, for short periods up to 3 min. T | 60 °C |
| Motor design | Submersible motor – surface-cooled |
| Voltage tolerance | ±10 % |
| Power factor cos φ100 | 0.78 |
| Rated power P2 | 0.75 kW |
| Power consumption P1 max | 1.03 kW |
| Rated current IN | 1.9 A |
| Starting current I | 10.1 A |
| Activation type | Direct On Line (DOL) |
| Number of poles | 2 |
| Rated speed n | 2840 1/min |
| Max. switching frequency t | 60 rph |
| Insulation class | F |
| Protection class | IP68 |
| Operating mode (immersed) | S1 |
| Pump housing | PP-GF30 |
| Impeller | PP-GF30 |
| Pipe connection, discharge side DNd | DN 50 |
| Connection cable length L | 10 m |
| Float switch | no |
| Fluid temperature T | 3 °C |
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 304 mm |
| Width W | 271 mm |
| Height H | 505 mm |
| Net weight (approx.) | 14.4 kg |
| Gross weight (approx.) | 16.4 kg |
| Length with packaging | 400 mm |
| Width with packaging | 300 mm |
| Height with packaging | 805 mm |
Data from the Wilo online catalogue and the Wilo South Africa price list. Specifications may change without notice.
