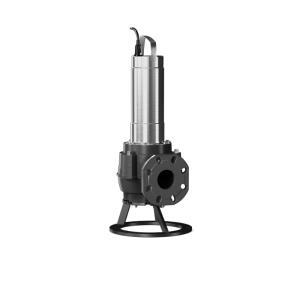

Wilo Rexa FIT V06DA-212/EAD1-2-T0011-540-O / 1.1kW Submersible Sewage Pump
19258
The Wilo Rexa FIT V06DA-212/EAD1-2-T0011-540-O is a submersible sewage pump from the Wilo Rexa FIT range with a 1.1 kW motor rating, delivering up to 35.0 m³/h at a maximum head of 8.3 m. Submersible sewage pump for intermittent operation for stationary and portable wet well installation.
Applications
- Pumping of
- Sewage containing faeces in accordance with EN 12050-1
- Wastewater
Features
- Ready to plug in and use
- Attached float switch (A-model) enables easy operation
- Safe vortex hydraulics with large, free ball passage to prevent clogging during operation
- Sealing chamber with optional external monitoring
- Low weight
- With float switch and plug (A)
- Operating and maintenance manual
Specifications
| Parameter | Value |
|---|---|
| Brand | Wilo |
| Item code | 6064599 |
| Model | Rexa FIT V06DA-212/EAD1-2-T0011-540-O |
| Series | Wilo Rexa FIT |
| Type | submersible sewage pump |
| Pressure port | DN 65/80 |
| Rated power P2 (kW) | 1.1 |
| switch | no |
| plug | no |
| Mains connection | 3~400 V, |
| Free ball passage (mm) | 65 |
| Maximum operating pressure p | 0.9 bar |
| Discharge port | DN 65/80 |
| Free ball passage of the hydraulics | 65 mm |
| Hydraulics type | Vortex impeller |
| Max. immersion depth | 7 m |
| Max. delivery head Hmax | 8.3 m |
| Max. volume flow Qmax | 35.0 m³/h |
| Min. fluid temperature Tmin | 3 °C |
| Max. fluid temperature Tmax | 40 °C |
| Min. ambient temperature Tmin | 3 °C |
| Max. ambient temperature Tmax | 40 °C |
| Motor design | Submersible motor – surface-cooled |
| Voltage tolerance | ±10 % |
| Power factor cos φ100 | 0.57 |
| Rated power P2 | 1.1 kW |
| Power consumption P1 max | 1.57 kW |
| Rated current IN | 4 A |
| Starting current I | 20.5 A |
| Activation type | Direct On Line (DOL) |
| Number of poles | 2 |
| Rated speed n | 2865 1/min |
| Max. switching frequency t | 60 rph |
| Insulation class | F |
| Pump housing | Grey cast iron |
| Pipe connection, suction side DNs | DN 65 |
| Connection cable length L | 10 m |
| Float switch | no |
| Maximum operating pressure PN | 1 bar |
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 250 mm |
| Width W | 200 mm |
| Height H | 553 mm |
| Net weight (approx.) | 35 kg |
| Gross weight (approx.) | 37 kg |
| Length with packaging | 400 mm |
| Width with packaging | 300 mm |
| Height with packaging | 805 mm |
Data from the Wilo online catalogue and the Wilo South Africa price list. Specifications may change without notice.
