Wilo Rexa PRO-V08-244A/20T105X540/O / 10.5kW Submersible Sewage Pump

R 71,282.75 incl. VATAdd to Basket

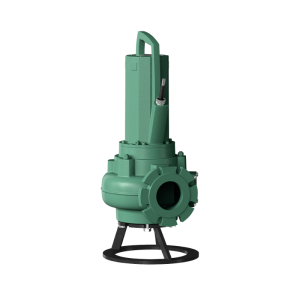

Wilo Rexa PRO-V08-244A/20T105X540/O / 10.5kW Submersible Sewage Pump image 1

The Wilo Rexa PRO-V08-244A/20T105X540/O is a submersible sewage pump from the Wilo Rexa PRO range with a 10.5 kW motor rating, delivering up to 165.6 m³/h at a maximum head of 27.3 m. Submersible sewage pump for continuous duty for stationary and portable wet well installation, as well as for stationary dry well installation.

At a glance

Power: 10.5 kWSupply: ±10 %Max. head: 27.5 mMax. flow: 12.75 m³/hConnections: DN 80/100Best for: Pumping of, Untreated sewage, Sewage containing faeces in accordance with (DIN) EN 12050-1

Specifications

BrandWilo
Item code6082821
ModelRexa PRO-V08-244A/20T105X540/O
SeriesWilo Rexa PRO
Typesubmersible sewage pump
Pressure portDN 80/100
Rated power P210.5 kW
Explosion protection (ATEX)yes
Mains connection3~400 V, 50Hz
Free ball passage50 mm
Maximum operating pressure p3 bar
Discharge portDN 80/100
Free ball passage of the hydraulics80 mm
Hydraulics typeVortex impeller
Max. immersion depth20 m
Max. delivery head Hmax27.3 m
Max. volume flow Qmax165.6 m³/h
Min. fluid temperature Tmin3 °C
Max. fluid temperature Tmax40 °C
Min. ambient temperature Tmin3 °C
Max. ambient temperature Tmax40 °C
Motor designSubmersible motor – surface-cooled
Voltage tolerance±10 %
Power factor cos φ1000.87
Rated power P210.5 kW
Power consumption P1 max12.30 kW
Rated current IN20.5 A
Starting current I57 A
Activation typeStar-Delta (YΔ)
Number of poles2
Rated speed n2914 1/min
Max. switching frequency t15 rph
Insulation classH
Protection classIP68
Pump housingGrey cast iron
Pipe connection, suction side DNsDN 80
Connection cable length L10 m
Float switchno
Maximum operating pressure PN3 bar
Dimensions (W × L × H)40 × 60 × 83 cm
Weight126 kg

Performance Table

Flow (m³/h)02468101212.75
Head (m)27.527.22726.726.426.125.725.7
Shaft power P2 (kW)–––––––181.94
Hydraulic efficiency (%)––––––––
NPSH required (m)22.423.123.724.324.925.425.926.1

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Rexa PRO-V08-244A/20T105X540/O:



Wilo Rexa PRO-V08-244A/20T105X540/O Performance Curve (50 Hz)

29 kB  |  Download

Applications

  • Pumping of
  • Untreated sewage
  • Sewage containing faeces in accordance with (DIN) EN 12050-1
  • Wastewater

Features

  • Highly effective. Thanks to efficiency-optimized single-channel impellers
  • Safe to operate due to low-clogging vortex impellers
  • Verified safety: Ex-rated in accordance with ATEX as standard
  • Energy-efficient IE3 motor technology available as an option

Dimensions & Weight

DimensionValue
Length L355 mm
Width W288 mm
Height H718 mm
Net weight (approx.)124 kg
Gross weight (approx.)126 kg
Length with packaging600 mm
Width with packaging400 mm
Height with packaging830 mm

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo Rexa PRO-V08-244A/20T105X540/O?

The Wilo Rexa PRO-V08-244A/20T105X540/O has a maximum head of 27.5 m.

How much water can the Wilo Rexa PRO-V08-244A/20T105X540/O pump?

The Wilo Rexa PRO-V08-244A/20T105X540/O pumps up to 12.75 m³/h.

What power supply does the Wilo Rexa PRO-V08-244A/20T105X540/O need?

Supply: ±10 %. Motor power: 10.5 kW.

What are the pipe connections of the Wilo Rexa PRO-V08-244A/20T105X540/O?

DN 80/100.
