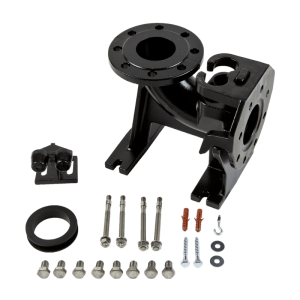

Wilo Suspension unit DN 100S/2RK Installation Accessory
19295
The Wilo Suspension unit DN 100S/2RK is a submersible sewage pump from the Wilo Rexa PRO range. Submersible sewage pump for continuous duty for stationary and portable wet well installation, as well as for stationary dry well installation.
Applications
- Pumping of
- Untreated sewage
- Sewage containing faeces in accordance with (DIN) EN 12050-1
- Wastewater
Features
- Highly effective. Thanks to efficiency-optimized single-channel impellers
- Safe to operate due to low-clogging vortex impellers
- Verified safety: Ex-rated in accordance with ATEX as standard
- Energy-efficient IE3 motor technology available as an option
Specifications
| Parameter | Value |
|---|---|
| Brand | Wilo |
| Item code | 6082336 |
| Model | Suspension unit DN 100S/2RK |
| Series | Wilo Rexa PRO |
| Type | submersible sewage pump |
| DN | elbow including pump holder, profile joint, installation and floor fixation acces- sories and double-pipe guide pipe bracket (42.4x2 mm) |
| Inlet connection | DN 100 |
| Outlet connection | DN 100 |
| Material | Grey cast iron |
| Make | Wilo |
| Item no. | 6082336 |
| Previous model article number | 6081728 |
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 306 mm |
| Width W | 271 mm |
| Height H | 649 mm |
| Net weight (approx.) | 33 kg |
| Gross weight (approx.) | 33 kg |
| Length with packaging | 400 mm |
| Width with packaging | 300 mm |
| Height with packaging | 805 mm |
Data from the Wilo online catalogue and the Wilo South Africa price list. Specifications may change without notice.
