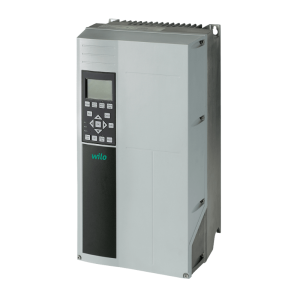

Wilo EFC5.5 3x380-480V 50/60Hz IP55 / 5.5kW Variable Speed Drive
19327
The Wilo EFC5.5 3x380-480V 50/60Hz IP55 is a frequency converter from the Wilo EFC Variable Speed Drives range with a 5.5 kW motor rating. Stand-alone frequency converter.
At a glance
Power: 5.5 kWSupply: 3Specifications
| Brand | Wilo |
| Item code | 2193437 |
| Model | EFC5.5 3x380-480V 50/60Hz IP55 |
| Series | Wilo EFC Variable Speed Drives |
| Type | frequency converter |
| of | 1 |
| current I A | 13 |
| Min. storage temperature | -25 °C |
| Max. storage temperature | 70 °C |
| Min. ambient temperature | 0 °C |
| Max. ambient temperature | 45 °C |
| Max. number of controllable pumps | 1 |
| Phases | 3 |
| Rated voltage U | 380-480 V |
| Mains frequency f | 50 Hz60 Hz |
| Min. rated current I | 10 A |
| Max. rated current per pump I | 13 A |
| Protection class | IP55 |
| Output signal | 0-20mA |
| Output voltage | 400380440460415480 |
| Max. rated power per pump motor P2 | 5.5 kW |
| Make | Wilo |
| Item no. | 2193437 |
| Dimensions (W × L × H) | 33 × 26 × 50 cm |
| Weight | 14.3 kg |
Applications
- This wall-mounted frequency converter can fit with fixed speed pumps equipped with Asynchronous or Permanent Magnet motors, in several applications, especially heating, air conditioning and pressure boosting
Features
- Flexible and safe application as a stand-alone frequency converter for fixed speed pumps
- Compact design with energy-saving cooling concept to reduce temperature losses
- Integrated energy-efficient harmonic reduction and additional energy-saving function in the partial load range of the pump
- Versatile use in pump applications thanks to several connection options and different control modes
- Easy commissioning thanks to intuitive assistant with graphical user interface
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 200 mm |
| Width W | 242 mm |
| Height H | 420 mm |
| Net weight (approx.) | 14 kg |
| Gross weight (approx.) | 14.3 kg |
| Length with packaging | 260 mm |
| Width with packaging | 330 mm |
| Height with packaging | 500 mm |
Data from the Wilo catalogue. Specifications may change without notice.
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What power supply does the Wilo EFC5.5 3x380-480V 50/60Hz IP55 need?
Supply: 3. Motor power: 5.5 kW.
What is the part / item code of the Wilo EFC5.5 3x380-480V 50/60Hz IP55?
The item code is 2193437.
