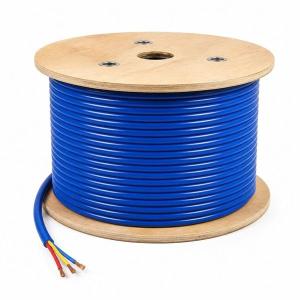

Submersible Pump Cable 3 Core x 1.5mm² Blue – 150m Short Drum
19357
150 m drum of round blue submersible borehole pump cable, 3 core x 1.5mm², manufactured to SANS 1574-3. Class 5 flexible copper conductors with waterproof PVC insulation and sheath rated for continuous immersion. Short-drum special – clearance stock sold as a complete 150 m drum at R18.26 per metre excl. VAT (normal full drums are 500 m). 2 drums of this length available; once sold it's gone.
Application
- Connecting single-phase submersible borehole pumps to the control box or starter
- Suitable for small borehole pumps up to about 1.1 kW over short to medium runs
- Domestic water supply, livestock watering, irrigation and solar borehole systems
- Continuous immersion in clean water – drinking-water boreholes
Features
- Manufactured to SANS 1574-3 – 600/1000 V rated, 3000 V tested
- Round profile – easy to pull through pump adaptors and glands
- Class 5 flexible stranded copper (28 × 0.26 mm) for easy handling and splicing
- Cores colour-coded red, yellow, blue for correct connection to the motor leads
- Waterproof flexible-grade PVC, -10 °C to +80 °C
- Blue sheath identifies 3-core single-phase cable at a glance
Specifications
| Drum length | 150 m (sold complete) |
|---|---|
| Cable type | Round submersible pump cable, PVC flexible |
| Standard | SANS 1574-3 |
| Cores | 3 – red, yellow, blue |
| Conductor size | 1.5 mm² per core |
| Conductor | High-conductivity annealed copper, class 5 flexible |
| Stranding | 28 × 0.26 mm |
| Insulation / sheath | Flexible-grade waterproof PVC, blue sheath |
| Voltage rating | 600/1000 V (3000 V test) |
| Operating temperature | -10 °C to +80 °C |
| Nominal overall diameter | 10.1 mm |
| Mass | 150 g/m – approx. 22.4 kg per drum (cable only) |
| Current rating | 16 A max; 15 A single-phase pump duty |
| Volt drop | 29 mV/A/m single-phase; 25 mV/A/m three-phase |
| Earth core | None – earth the pump via the installation's earth conductor |
| Price per metre | R18.26 excl. VAT |
Maximum run length at 5% volt drop (single-phase)
| Motor full-load current | Max cable run |
|---|---|
| 2 A | 189 m |
| 4 A | 94 m |
| 6 A | 63 m |
| 8 A | 47 m |
| 10 A | 37 m |
| 13 A | 29 m |
Total run = borehole depth + surface run to the control box. Send us the pump model and borehole depth and we'll confirm the cable size free of charge.
Frequently asked questions
Can I buy part of the drum?
No – short-drum specials are sold as complete drums at the per-metre price. Choose the length closest to your installation, allowing extra for the splice and the run to the control box.
Does this cable have an earth core?
No. It carries the live and neutral conductors to the motor; the pump is earthed through the installation's earth conductor as required by SANS 10142-1.
Is it suitable for drinking-water boreholes?
Yes – waterproof PVC to SANS 1574-3 for continuous immersion, the standard cable for borehole pump installations in South Africa.
How do I join it to the pump motor leads?
Use a submersible cable splice kit (heat-shrink or resin) rated for continuous immersion – we stock them.
Get help choosing the right cable
Limited stock – send us your pump model or motor current, the borehole depth and the distance to the control box, and we will size the cable and reserve a drum for you.
