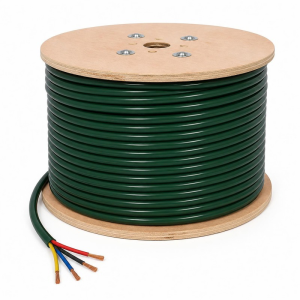

Submersible Pump Cable 4 Core x 1.5mm² Green – 300m Short Drum
19359
300 m drum of round green submersible borehole pump cable, 4 core x 1.5mm², manufactured to SANS 1574-3. Class 5 flexible copper conductors with waterproof PVC insulation and sheath rated for continuous immersion. Short-drum special – clearance stock sold as a complete 300 m drum at R24.54 per metre excl. VAT (normal full drums are 500 m). 2 drums of this length available; once sold it's gone.
Specifications
| Drum length | 300 m (sold complete) |
| Cable type | Round submersible pump cable, PVC flexible |
| Standard | SANS 1574-3 |
| Cores | 4 – red, yellow, blue, black |
| Conductor size | 1.5 mm² per core |
| Conductor | High-conductivity annealed copper, class 5 flexible |
| Stranding | 28 × 0.26 mm |
| Insulation / sheath | Flexible-grade waterproof PVC, green sheath |
| Voltage rating | 600/1000 V (3000 V test) |
| Operating temperature | -10 °C to +80 °C |
| Nominal overall diameter | 10.9 mm |
| Mass | 177 g/m – approx. 53.1 kg per drum (cable only) |
| Current rating | 16 A max; 15 A single-phase pump duty |
| Volt drop | 29 mV/A/m single-phase; 25 mV/A/m three-phase |
| Earth core | None – earth the pump via the installation's earth conductor |
| Price per metre | R24.54 excl. VAT |
| Item code | CAB-4X15-GRE-300M |
Applications
- Connecting three-phase submersible borehole pumps to the control box or starter
- Suitable for small borehole pumps up to about 1.1 kW over short to medium runs
- Domestic water supply, livestock watering, irrigation and solar borehole systems
- Continuous immersion in clean water – drinking-water boreholes
Features
- Manufactured to SANS 1574-3 – 600/1000 V rated, 3000 V tested
- Round profile – easy to pull through pump adaptors and glands
- Class 5 flexible stranded copper (28 × 0.26 mm) for easy handling and splicing
- Cores colour-coded red, yellow, blue, black for correct connection to the motor leads
- Waterproof flexible-grade PVC, -10 °C to +80 °C
- Green sheath identifies 4-core three-phase cable at a glance
Maximum run length at 5% volt drop (three-phase)
| Motor full-load current | Max cable run |
|---|---|
| 2 A | 380 m |
| 4 A | 190 m |
| 6 A | 126 m |
| 8 A | 95 m |
| 10 A | 76 m |
| 13 A | 58 m |
Total run = borehole depth + surface run to the control box. Send us the pump model and borehole depth and we'll confirm the cable size free of charge.
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the part / item code of the Submersible Pump Cable 4 Core x 1.5mm² Green?
The item code is CAB-4X15-GRE-300M.
Can I buy part of the drum?
No – short-drum specials are sold as complete drums at the per-metre price. Choose the length closest to your installation, allowing extra for the splice and the run to the control box.
Does this cable have an earth core?
No. It carries the three phase conductors to the motor; the pump is earthed through the installation's earth conductor as required by SANS 10142-1.
Is it suitable for drinking-water boreholes?
Yes – waterproof PVC to SANS 1574-3 for continuous immersion, the standard cable for borehole pump installations in South Africa.
How do I join it to the pump motor leads?
Use a submersible cable splice kit (heat-shrink or resin) rated for continuous immersion – we stock them.
