Submersible Pump Cable 3 Core x 4mm² Blue – 250m Short Drum

R 11,834.21 incl. VATAdd to Basket

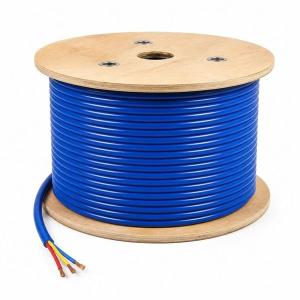

Submersible Pump Cable 3 Core x 4mm² Blue – 250m Short Drum image 1

250 m drum of round blue submersible borehole pump cable, 3 core x 4mm², manufactured to SANS 1574-3. Class 5 flexible copper conductors with waterproof PVC insulation and sheath rated for continuous immersion. Short-drum special – clearance stock sold as a complete 250 m drum at R41.16 per metre excl. VAT (normal full drums are 500 m). 7 drums of this length available; once sold it's gone.

Specifications

Drum length250 m (sold complete)
Cable typeRound submersible pump cable, PVC flexible
StandardSANS 1574-3
Cores3 – red, yellow, blue
Conductor size4 mm² per core
ConductorHigh-conductivity annealed copper, class 5 flexible
Stranding49 × 0.31 mm
Insulation / sheathFlexible-grade waterproof PVC, blue sheath
Voltage rating600/1000 V (3000 V test)
Operating temperature-10 °C to +80 °C
Nominal overall diameter13.0 mm
Mass277 g/m – approx. 69.1 kg per drum (cable only)
Current rating30 A max; 27 A single-phase pump duty
Volt drop11 mV/A/m single-phase; 9.5 mV/A/m three-phase
Earth coreNone – earth the pump via the installation's earth conductor
Price per metreR41.16 excl. VAT
Item codeCAB-3X4-BLU-250M

Applications

  • Connecting single-phase submersible borehole pumps to the control box or starter
  • Suitable for borehole pumps of 1.5–3 kW or longer cable runs where volt-drop matters
  • Domestic water supply, livestock watering, irrigation and solar borehole systems
  • Continuous immersion in clean water – drinking-water boreholes

Features

  • Manufactured to SANS 1574-3 – 600/1000 V rated, 3000 V tested
  • Round profile – easy to pull through pump adaptors and glands
  • Class 5 flexible stranded copper (49 × 0.31 mm) for easy handling and splicing
  • Cores colour-coded red, yellow, blue for correct connection to the motor leads
  • Waterproof flexible-grade PVC, -10 °C to +80 °C
  • Blue sheath identifies 3-core single-phase cable at a glance

Maximum run length at 5% volt drop (single-phase)

Motor full-load currentMax cable run
6 A166 m
10 A100 m
15 A66 m
20 A50 m
25 A40 m

Total run = borehole depth + surface run to the control box. Send us the pump model and borehole depth and we'll confirm the cable size free of charge.

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the part / item code of the Submersible Pump Cable 3 Core x 4mm² Blue?

The item code is CAB-3X4-BLU-250M.

Can I buy part of the drum?

No – short-drum specials are sold as complete drums at the per-metre price. Choose the length closest to your installation, allowing extra for the splice and the run to the control box.

Does this cable have an earth core?

No. It carries the live and neutral conductors to the motor; the pump is earthed through the installation's earth conductor as required by SANS 10142-1.

Is it suitable for drinking-water boreholes?

Yes – waterproof PVC to SANS 1574-3 for continuous immersion, the standard cable for borehole pump installations in South Africa.

How do I join it to the pump motor leads?

Use a submersible cable splice kit (heat-shrink or resin) rated for continuous immersion – we stock them.
