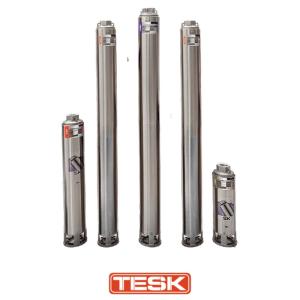

Tesk 4SD10/16 – 3kW 4” Submersible Borehole Pump End
19427
The Tesk 4SD10/16 is a 4” multistage submersible borehole pump end from the Tesk 4SD range, built for a 3 kW 4” motor (motor and control box sold separately, or buy the complete kit). Nominal flow 10 m³/h, 16 stages.
Special offer: reduced price while stock lasts.
At a glance
Power: 3 kWMax. head: 100 mMax. flow: 12.6 m³/hBest for: Groundwater and well pumping, Residential and municipal water supply, Pressure systems and pipeline pressurisationSpecifications
| Brand | Tesk |
| Item code | 6012092 |
| Model | 4SD10/16 |
| Type | 4” submersible borehole pump end (hydraulic part, no motor) |
| Nominal flow | 10 m³/h |
| Number of stages | 16 |
| Motor required | 3 kW (4 HP) NEMA 4” submersible motor |
| Shipping mass (approx.) | 10 kg |
| Motor power | 3 kW |
Performance Table
| Flow (m³/h) | 0.0 | 1.8 | 3.6 | 5.4 | 7.2 | 9.0 | 10.8 | 12.6 |
|---|---|---|---|---|---|---|---|---|
| Head (m) | 100 | 98 | 91 | 88 | 84 | 74 | 59 | 36 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Tesk 4SD10/16:
Vega 4SD10 Series Performance Curves
438 kB | Download
Vega 4SD10 Series Performance Curves
438 kB | Download
Applications
- Groundwater and well pumping
- Residential and municipal water supply
- Pressure systems and pipeline pressurisation
- Spray irrigation
- Fire protection and cooling circulation
Features
- Multistage 4” submersible pump end (hydraulics only) with NEMA coupling for a standard 4” motor
- Plastic impellers and plastic wear box (all-plastic hydraulics) – light and economical
- Built-in check valve
- 50 Hz, 2900 rpm
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Tesk 4SD10/16?
The Tesk 4SD10/16 has a maximum head of 100 m.
How much water can the Tesk 4SD10/16 pump?
The Tesk 4SD10/16 pumps up to 12.6 m³/h.
What is the motor power of the Tesk 4SD10/16?
The motor power is 3 kW.
