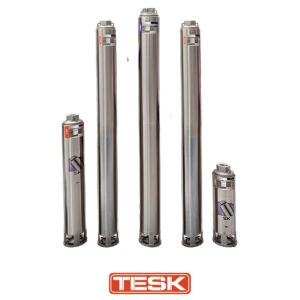

Tesk 4SD6/23 – 3kW 4” Submersible Borehole Pump End
19493
The Tesk 4SD6/23 is a 4” multistage submersible borehole pump end from the Tesk 4SD range, built for a 3 kW 4” motor (motor and control box sold separately, or buy the complete kit). Nominal flow 6 m³/h, 23 stages.
Special offer: reduced price while stock lasts.
At a glance
Power: 3 kWMax. head: 154 mMax. flow: 8.4 m³/hBest for: Groundwater and well pumping, Residential and municipal water supply, Pressure systems and pipeline pressurisationSpecifications
| Brand | Tesk |
| Item code | 6012059 |
| Model | 4SD6/23 |
| Type | 4” submersible borehole pump end (hydraulic part, no motor) |
| Nominal flow | 6 m³/h |
| Number of stages | 23 |
| Motor required | 3 kW (4 HP) NEMA 4” submersible motor |
| Shipping mass (approx.) | 10 kg |
| Motor power | 3 kW |
Performance Table
| Flow (m³/h) | 0.0 | 1.2 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 | 8.4 |
|---|---|---|---|---|---|---|---|---|
| Head (m) | 154 | 142 | 132 | 123 | 112 | 100 | 74 | 46 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Tesk 4SD6/23:
Vega 4SD6 Series Performance Curves
438 kB | Download
Vega 4SD6 Series Performance Curves
438 kB | Download
Applications
- Groundwater and well pumping
- Residential and municipal water supply
- Pressure systems and pipeline pressurisation
- Spray irrigation
- Fire protection and cooling circulation
Features
- Multistage 4” submersible pump end (hydraulics only) with NEMA coupling for a standard 4” motor
- Plastic impellers and plastic wear box (all-plastic hydraulics) – light and economical
- Built-in check valve
- 50 Hz, 2900 rpm
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Tesk 4SD6/23?
The Tesk 4SD6/23 has a maximum head of 154 m.
How much water can the Tesk 4SD6/23 pump?
The Tesk 4SD6/23 pumps up to 8.4 m³/h.
What is the motor power of the Tesk 4SD6/23?
The motor power is 3 kW.
