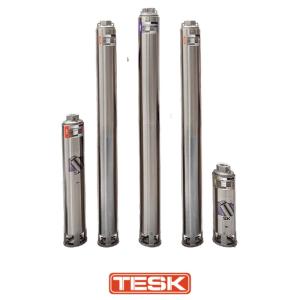

Tesk 4SD6/34 – 4kW 4” Submersible Borehole Pump End
19496
The Tesk 4SD6/34 is a 4” multistage submersible borehole pump end from the Tesk 4SD range, built for a 4 kW 4” motor (motor and control box sold separately, or buy the complete kit). Nominal flow 6 m³/h, 34 stages.
Special offer: reduced price while stock lasts.
Applications
- Groundwater and well pumping
- Residential and municipal water supply
- Pressure systems and pipeline pressurisation
- Spray irrigation
- Fire protection and cooling circulation
Features
- Multistage 4” submersible pump end (hydraulics only) with NEMA coupling for a standard 4” motor
- Plastic impellers and plastic wear box (all-plastic hydraulics) – light and economical
- Built-in check valve
- 50 Hz, 2900 rpm
Specifications
| Parameter | Value |
|---|---|
| Brand | Tesk |
| Item code | 6012062 |
| Model | 4SD6/34 |
| Type | 4” submersible borehole pump end (hydraulic part, no motor) |
| Nominal flow | 6 m³/h |
| Number of stages | 34 |
| Motor required | 4 kW (5.5 HP) NEMA 4” submersible motor |
| Shipping mass (approx.) | 12 kg |
Nominal flow and stage count from the model code. Full performance data for this model: ask us. Pump end supplied without motor.
Get help choosing the right borehole pump
Special offer – reduced price while stock lasts. Send us your borehole depth, water level and daily water need and we will confirm the right pump, motor and cable.
