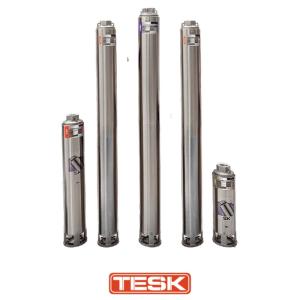

Tesk 4SD10/28 Borehole Pump Kit – 5.5kW 400V (pump end and 400V motor)
19724
Complete 4” borehole pump kit: a Tesk 4SD10/28 4” pump end, a 5.5 kW 400V oil-filled submersible motor (three phase – run from a starter or solar pump inverter) – everything below ground except the pipe and cable. Nominal flow 10 m³/h, 28 stages.
Special offer: reduced price while stock lasts.
At a glance
Power: 5.5 kWSupply: 400 VMax. head: 172 mMax. flow: 12.6 m³/hBest for: Groundwater and well pumping, Residential and municipal water supply, Pressure systems and pipeline pressurisationSpecifications
| Brand | Tesk |
| Weight | 40.7 kg |
| Motor power | 5.5 kW |
| Voltage | 400 V |
| Item code | KIT-6012097 |
Performance Table
| Flow (m³/h) | 0.0 | 1.8 | 3.6 | 5.4 | 7.2 | 9.0 | 10.8 | 12.6 |
|---|---|---|---|---|---|---|---|---|
| Head (m) | 172 | 168 | 158 | 152 | 146 | 125 | 103 | 62 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Tesk 4SD10/28 Borehole Pump Kit:
Vega 4SD10 Series Performance Curves
438 kB | Download
Vega 4SD10 Series Performance Curves
438 kB | Download
Applications
- Groundwater and well pumping
- Residential and municipal water supply
- Pressure systems and pipeline pressurisation
- Spray irrigation
- Fire protection and cooling circulation
Specifications – what is in the kit
| Parameter | Value |
|---|---|
| Brand | Tesk |
| Kit code | KIT-6012097 |
| Pump end | 4SD10/28 (6012097) |
| Motor | Tesk 4” Oil-Filled Submersible Motor 5.5kW 400V 3-Phase (6022009) |
| Nominal flow | 10 m³/h |
| Number of stages | 28 |
| Motor power | 5.5 kW (7.5 HP) |
| Supply | 400V three phase |
| Shipping mass (approx.) | 40.7 kg |
Pump end only: Tesk 4SD10 pump ends.
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Tesk 4SD10/28 Borehole Pump Kit?
The Tesk 4SD10/28 Borehole Pump Kit has a maximum head of 172 m.
How much water can the Tesk 4SD10/28 Borehole Pump Kit pump?
The Tesk 4SD10/28 Borehole Pump Kit pumps up to 12.6 m³/h.
What power supply does the Tesk 4SD10/28 Borehole Pump Kit need?
Supply: 400 V. Motor power: 5.5 kW.
