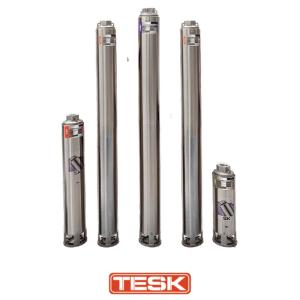

Tesk 4SK2/7 Borehole Pump Kit – 0.37kW 230V (pump end, motor and control box)
19734
Complete 4” borehole pump kit: a Tesk 4SK2/7 4” pump end, a 0.37 kW 230V oil-filled submersible motor and the matching 0.37 kW 230 V control box – everything below ground except the pipe and cable. Nominal flow 2 m³/h, 7 stages. Maximum head about 47 m.
Special offer: reduced price while stock lasts.
Applications
- Groundwater and well pumping
- Residential and municipal water supply
- Pressure systems and pipeline pressurisation
- Spray irrigation
- Fire protection and cooling circulation
What is in the kit
| Parameter | Value |
|---|---|
| Brand | Tesk |
| Kit code | KIT-6013008 |
| Pump end | 4SK2/7 (6013008) |
| Motor | Tesk 4” Oil-Filled Submersible Motor 0.37kW 230V Single Phase (6021010) |
| Control box | 0.37 kW 230 V (6024010) |
| Nominal flow | 2 m³/h |
| Number of stages | 7 |
| Motor power | 0.37 kW (0.5 HP) |
| Supply | 230V single phase |
| Maximum head | 47 m |
| Outlet | 32 mm (1¼") |
| Assembled length | 616 mm |
| Shipping mass (approx.) | 13.9 kg |
Performance
| Flow Q (m³/h) | 0 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 |
|---|---|---|---|---|---|---|---|
| Head H (m) | 47 | 39 | 35 | 32 | 28 | 24 | 19 |
Head at flow from the Tesk SK 50 Hz catalogue (2900 rpm, clean water at 20 °C).
Pump end only: Tesk 4SK2 pump ends.
Get help choosing the right borehole pump kit
Special offer – reduced price while stock lasts. Send us your borehole depth, water level and daily water need and we will confirm the right pump, motor and cable.
