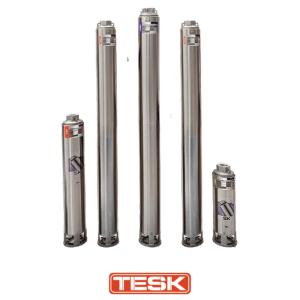

Tesk 4SK4/35 Borehole Pump Kit – 3kW 400V (pump end and 400V motor)
19753
Complete 4” borehole pump kit: a Tesk 4SK4/35 4” pump end, a 3 kW 400V oil-filled submersible motor (three phase – run from a starter or solar pump inverter) – everything below ground except the pipe and cable. Nominal flow 4 m³/h, 35 stages. Maximum head about 231 m.
Special offer: reduced price while stock lasts.
Applications
- Groundwater and well pumping
- Residential and municipal water supply
- Pressure systems and pipeline pressurisation
- Spray irrigation
- Fire protection and cooling circulation
What is in the kit
| Parameter | Value |
|---|---|
| Brand | Tesk |
| Kit code | KIT-6013027 |
| Pump end | 4SK4/35 (6013027) |
| Motor | Tesk 4” Oil-Filled Submersible Motor 3kW 400V 3-Phase (6022007) |
| Nominal flow | 4 m³/h |
| Number of stages | 35 |
| Motor power | 3 kW (4 HP) |
| Supply | 400V three phase |
| Maximum head | 231 m |
| Outlet | 32 mm (1¼") |
| Assembled length | 1547 mm |
| Shipping mass (approx.) | 25.5 kg |
Performance
| Flow Q (m³/h) | 0 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 |
|---|---|---|---|---|---|---|---|
| Head H (m) | 231 | 184 | 166 | 145 | 119 | 85 | 49 |
Head at flow from the Tesk SK 50 Hz catalogue (2900 rpm, clean water at 20 °C).
Pump end only: Tesk 4SK4 pump ends.
Get help choosing the right borehole pump kit
Special offer – reduced price while stock lasts. Send us your borehole depth, water level and daily water need and we will confirm the right pump, motor and cable.
