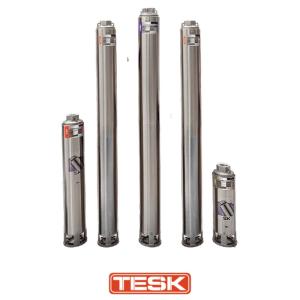

Tesk 4SK5/24 Borehole Pump Kit – 2.2kW 230V (pump end, motor and control box)
19761
Complete 4” borehole pump kit: a Tesk 4SK5/24 4” pump end, a 2.2 kW 230V oil-filled submersible motor and the matching 2.2 kW 230 V control box – everything below ground except the pipe and cable. Nominal flow 5 m³/h, 24 stages. Maximum head about 151 m.
Special offer: reduced price while stock lasts.
Applications
- Groundwater and well pumping
- Residential and municipal water supply
- Pressure systems and pipeline pressurisation
- Spray irrigation
- Fire protection and cooling circulation
What is in the kit
| Parameter | Value |
|---|---|
| Brand | Tesk |
| Kit code | KIT-6013035 |
| Pump end | 4SK5/24 (6013035) |
| Motor | Tesk 4” Oil-Filled Submersible Motor 2.2kW 230V Single Phase (6021015) |
| Control box | 2.2 kW 230 V (6024015) |
| Nominal flow | 5 m³/h |
| Number of stages | 24 |
| Motor power | 2.2 kW (3 HP) |
| Supply | 230V single phase |
| Maximum head | 151 m |
| Outlet | 32 mm (1¼") |
| Assembled length | 1286 mm |
| Shipping mass (approx.) | 25.6 kg |
Performance
| Flow Q (m³/h) | 0 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 6.6 |
|---|---|---|---|---|---|---|---|
| Head H (m) | 151 | 122 | 111 | 97 | 80 | 62 | 44 |
Head at flow from the Tesk SK 50 Hz catalogue (2900 rpm, clean water at 20 °C).
Pump end only: Tesk 4SK5 pump ends.
Get help choosing the right borehole pump kit
Special offer – reduced price while stock lasts. Send us your borehole depth, water level and daily water need and we will confirm the right pump, motor and cable.
