Watermax WSA - 3600L/day @140m Head
5017

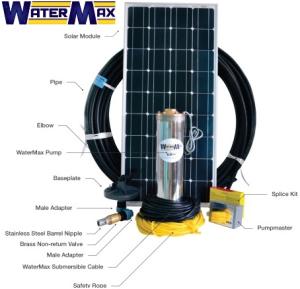

Your complete kit is powered by 500W solar modules and includes:
Watermax High Efficiency Pump, Solar Module with
frame & brackets & fittings, Solar Module Frame
(excluding pole 4-module system and two poles each
for 6 & 8 module systems), DC150 MPPT Auto
Pumpmaster (control box), Submersible Cable
(installation depth + 5m), SABS approved HDPE pipe,
Safety Rope (installation depth + 5m), Base Plate, Elbow,
Male Adaptors, Cable Ties, Stainless Steel Barrel
Nipple, Brass Non-return Valve, Splicing kit (splicing
done in factory), Operating Manual.
Specifications
| Item code | wsa140m500w |
Performance Table
| Head (m) | 10 | 20 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output (L/day) | 8313 | 7905 | 7508 | 7425 | 7120 | 6960 | 6525 | 5880 | 5395 | 4980 | 4400 | 3950 | 3600 | 3400 | 2850 |
Daily output at total head for this kit (Watermax WSA with 500W solar modules), from the Watermax kit data. Output depends on sunshine – typical clear-day figures.
