Watermax WSA - 8190L/day @40m Head
5023

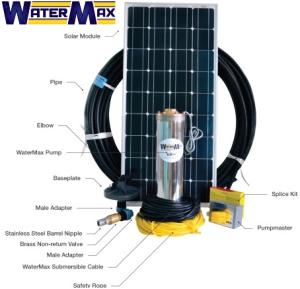

Your complete kit is powered by 600W solar modules and includes:
Watermax High Efficiency Pump, Solar Module with
frame & brackets & fittings, Solar Module Frame
(excluding pole 4-module system and two poles each
for 6 & 8 module systems), DC150 MPPT Auto
Pumpmaster (control box), Submersible Cable
(installation depth + 5m), SABS approved HDPE pipe,
Safety Rope (installation depth + 5m), Base Plate, Elbow,
Male Adaptors, Cable Ties, Stainless Steel Barrel
Nipple, Brass Non-return Valve, Splicing kit (splicing
done in factory), Operating Manual.
Specifications
| Item code | wsa40m600w |
Performance Table
| Head (m) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output (L/day) | 8550 | 8370 | 8280 | 8190 | 7788 | 7565 | 7395 | 7225 | 6930 | 6640 | 5810 | 5333 | 4740 | 4620 | 4460 | 4125 |
Daily output at total head for this kit (Watermax WSA with 600W solar modules), from the Watermax kit data. Output depends on sunshine – typical clear-day figures.
