Watermax WSA - 8650L/day @10m Head
5036

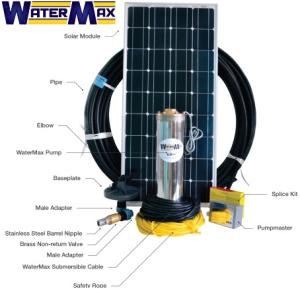

Your complete kit is powered by 800W solar modules and includes:
Watermax High Efficiency Pump, Solar Module with
frame & brackets & fittings, Solar Module Frame
(excluding pole 4-module system and two poles each
for 6 & 8 module systems), DC150 MPPT Auto
Pumpmaster (control box), Submersible Cable
(installation depth + 5m), SABS approved HDPE pipe,
Safety Rope (installation depth + 5m), Base Plate, Elbow,
Male Adaptors, Cable Ties, Stainless Steel Barrel
Nipple, Brass Non-return Valve, Splicing kit (splicing
done in factory), Operating Manual.
Specifications
| Item code | wsa10m800w |
Performance Table
| Head (m) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output (L/day) | 8650 | 8470 | 8380 | 8290 | 8100 | 8010 | 7830 | 7438 | 7140 | 7055 | 6765 | 6320 | 5530 | 5390 | 5220 | 4500 |
Daily output at total head for this kit (Watermax WSA with 800W solar modules), from the Watermax kit data. Output depends on sunshine – typical clear-day figures.
