Watermax PSC - 2520L/day @150m Head
5082

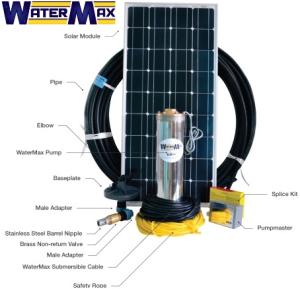

Your complete kit is powered by 500W solar modules and includes:
Watermax High Efficiency Pump, Solar Module with
frame & brackets & fittings, Solar Module Frame
(excluding pole 4-module system and two poles each
for 6 & 8 module systems), DC150 MPPT Auto
Pumpmaster (control box), Submersible Cable
(installation depth + 5m), SABS approved HDPE pipe,
Safety Rope (installation depth + 5m), Base Plate, Elbow,
Male Adaptors, Cable Ties, Stainless Steel Barrel
Nipple, Brass Non-return Valve, Splicing kit (splicing
done in factory), Operating Manual.
Specifications
| Item code | psc150m500w |
Performance Table
| Head (m) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output (L/day) | 8925 | 8500 | 8075 | 7200 | 6880 | 6560 | 5925 | 5438 | 4550 | 4020 | 3900 | 3050 | 2900 | 2750 | 2520 | 2200 |
Daily output at total head for this kit (Watermax PSC with 500W solar modules), from the Watermax kit data. Output depends on sunshine – typical clear-day figures.
