Watermax PSC - 2880L/day @160m Head
5099

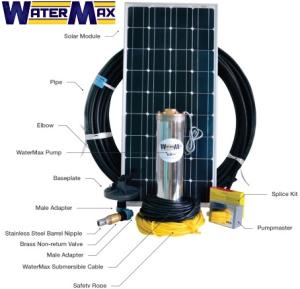

Your complete kit is powered by 600W solar modules and includes:
Watermax High Efficiency Pump, Solar Module with
frame & brackets & fittings, Solar Module Frame
(excluding pole 4-module system and two poles each
for 6 & 8 module systems), DC150 MPPT Auto
Pumpmaster (control box), Submersible Cable
(installation depth + 5m), SABS approved HDPE pipe,
Safety Rope (installation depth + 5m), Base Plate, Elbow,
Male Adaptors, Cable Ties, Stainless Steel Barrel
Nipple, Brass Non-return Valve, Splicing kit (splicing
done in factory), Operating Manual.
Specifications
| Item code | psc160m600w |
Performance Table
| Head (m) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output (L/day) | 9450 | 9000 | 7650 | 8100 | 7525 | 6970 | 6320 | 5813 | 5425 | 5025 | 4550 | 4270 | 3770 | 3300 | 3060 | 2880 |
Daily output at total head for this kit (Watermax PSC with 600W solar modules), from the Watermax kit data. Output depends on sunshine – typical clear-day figures.
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
