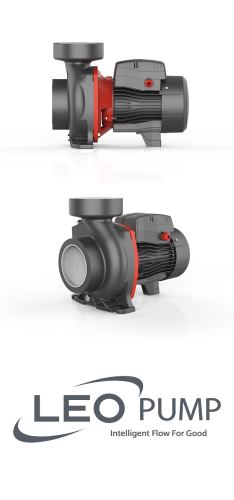

Leo ACm220BF3 / 2.2KW 230V Centrifugal Pump And Motor
5143
The LEO ACm220BF3 is a robust centrifugal pump engineered for versatile water transfer and pressure boosting applications across residential, commercial and industrial settings. Ideal for urban water supply systems, high-rise pressure boosting, fire fighting equipment, garden irrigation, HVAC circulation and long-distance water transfer, this pump delivers reliable performance wherever clean water or water-like liquids need to be moved with efficiency and dependability.
Built with a cast iron pump body featuring specialized anti-rust treatment and a corrosion-resistant AISI 304 stainless steel shaft, the ACm220BF3 is constructed to withstand demanding environments while maintaining long service life. Equipped with a low-noise motor featuring copper windings, precision bearings and thermal protection, this pump handles maximum liquid temperatures up to 60 degC and delivers consistent performance in applications ranging from cold and hot water circulation to heating and ventilation systems, with an IPX4 rated enclosure suitable for varied installation conditions.
At a glance
Power: 2.2 kW (3 HP)Supply: 230 V single-phase, 50 HzMax. head: 17.5 mMax. flow: 66 m³/h (1100 l/min)Connections: 3" flangeSpecifications
| Brand | Leo |
| Model | ACm220BF3 |
| Type | ACm/AC-BF Flanged Centrifugal Pump |
| Motor power | 2.2 kW (3 HP) |
| Supply | 230 V single-phase, 50 Hz |
| Inlet / outlet | 3" flange |
| Shut-off head | 17.5 m |
| Flow range | 0 – 66 m³/h (0 – 1100 l/min) |
| Dimensions (W × L × H) | 28.8 × 52.2 × 35.2 cm |
| Weight | 41.7 kg |
| Item code | ACm220BF3(220V) |
Performance Table
| Flow Q (m³/h) | 0 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 |
| Head H (m) | 17.5 | 17.3 | 17.1 | 16.5 | 16 | 15.2 | 14.2 | 13.2 | 11.7 | 10 | 7.2 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo ACm220BF3:
Leo ACm/AC-BF Flanged Centrifugal Pump – Performance Curves and Technical Data (01-DOMESTIC PUMP catalogue p29)
351 kB | Download
Applications
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air conditioning, circulation and pressure boosting for cold and hot water, and supporting equipment etc.
Pump
- Cast iron pump body and support under special anti-rust treatment
- AISI 304 shaft
- Max. liquid temperture: +60 degC
- Max.suction: +8m
Motor
- Low noise&Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor (<=1.5kW)
- Insulation class: F
- Enclosures class: IPX4
- Max. ambient temperture: +50 degC
- IE 2 motor (Three phase, power >= 0.75kW)
Model Code: ACm220BF3(220V)
- A - LEO Product Style
- C - Centrifugal Pump
- m - Single Phase Motor (Omitted for three-phase motor)
- 150 - Power (x10W)
- B - Features
- F - Flange
- 2 - Inlet Diameter (")
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo ACm220BF3?
The Leo ACm220BF3 has a maximum head of 17.5 m.
How much water can the Leo ACm220BF3 pump?
The Leo ACm220BF3 pumps up to 66 m³/h (1100 l/min).
What power supply does the Leo ACm220BF3 need?
Supply: 230 V single-phase, 50 Hz. Motor power: 2.2 kW (3 HP).
What are the pipe connections of the Leo ACm220BF3?
3" flange.
