Leo XKP450 / 450W 230V Pool Pump And Motor
5169

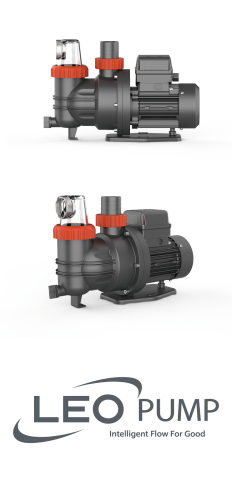

Introducing the LEO XKP450(E)-2(T) pool pump, a reliable 450W circulation solution engineered specifically for residential swimming pools of all sizes. This domestic pool pump excels at maintaining crystal-clear water through continuous circulation while effectively filtering slightly dirty water containing suspended solids, making it an essential component for year-round pool maintenance and hygiene.
Built with a durable engineering plastic pump body and powered by a robust motor featuring copper or aluminum winding technology, the XKP450(E)-2(T) is designed to operate safely in medium temperature environments from 5 to 50 degC. Its integrated thermal protector, IPX5 water-resistant enclosure rating, and F-class insulation ensure dependable performance and protection, while the convenient built-in timer model allows for automated operation-perfect for pool owners seeking hassle-free circulation and filtration without constant manual adjustment.
At a glance
Power: 0.45 kWSupply: 230 V single-phase, 50 HzMax. head: 10 mMax. flow: 9 m³/h (150 l/min)Connections: 40 mmSpecifications
| Brand | Leo |
| Model | XKP450 |
| Catalogue model | XKP450(E)-2(T) (same hydraulics) |
| Type | XKP..(E)-2(T) Pool Pump 250-450 W |
| Motor power | 0.45 kW |
| Supply | 230 V single-phase, 50 Hz |
| Inlet / outlet | 40 mm |
| Max. head (catalogue) | 10 m at 1 m³/h |
| Flow range | 1 – 9 m³/h (17 – 150 l/min) |
| Dimensions (W × L × H) | 20.3 × 45 × 23.8 cm |
| Weight | 6.5 kg |
| Item code | XKP450(220V) |
Performance Table
| Flow Q (m³/h) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 17 | 33 | 50 | 66 | 83 | 100 | 116 | 132 | 150 |
| Head H (m) | 10 | 9.1 | 8.5 | 8 | 7.3 | 6.4 | 5.2 | 4 | 2.4 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo XKP450:
Leo XKP..(E)-2(T) Pool Pump 250-450 W – Performance Curves and Technical Data (01-DOMESTIC PUMP catalogue p48)
310 kB | Download
Applications
It is used for water circulation in all kinds of small domestic swimming pools. Slightly dirty water with solids in suspension can be perfectly filtered.
Pump
- Engineering plastic pump body
- Medium temperture: 5 - 50 degC
- Environmental temperture: <=40 degC
Motor
- Motor with copper or aluminum winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX5
Model Code: XKP450(220V)
- XKP - Pool Pump
- 450 - Power (W)
- E - Pump Feature (Timing models without E)
- 2 - Product Style
- T - Timer
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo XKP450?
The Leo XKP450 has a maximum head of 10 m.
How much water can the Leo XKP450 pump?
The Leo XKP450 pumps up to 9 m³/h (150 l/min).
What power supply does the Leo XKP450 need?
Supply: 230 V single-phase, 50 Hz. Motor power: 0.45 kW.
What are the pipe connections of the Leo XKP450?
40 mm.
