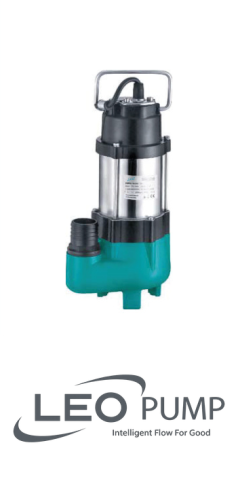

Leo XSP9-7.5-0.25I / 0.25KW 230V Submersible Sewage Pump And Motor
5190
The LEO XSP9-7.5/0.25l is a robust sewage submersible pump engineered for reliable wastewater drainage across industrial, municipal, and residential applications. Designed to handle the demanding conditions of factories, construction sites, commercial facilities, and municipal sewage treatment plants, this pump delivers consistent performance in drainage stations, methane pools, and field irrigation systems throughout rural and urban environments.
Built with a durable pump body and stainless steel welded shaft, the XSP9-7.5/0.25l features a copper-wound motor with integrated thermal protection and IP68 rated sealing for complete submersion up to 5 meters. Its robust construction handles wastewater with pH levels between 4 and 10 and liquid temperatures up to 40 degC, making it ideal for municipal projects, residential quarter drainage systems, and agricultural applications where reliable, long-lasting performance is essential.
At a glance
Power: 0.25 kWSupply: 230 V single-phase, 50 HzMax. head: 7.2 mMax. flow: 9 m³/h (150 l/min)Specifications
| Brand | Leo |
| Model | XSP9-7.5-0.25I |
| Type | XSP Stainless Steel Sewage Submersible Pump |
| Motor power | 0.25 kW |
| Supply | 230 V single-phase, 50 Hz |
| Max. head (catalogue) | 7.2 m at 1 m³/h |
| Flow range | 1 – 9 m³/h (17 – 150 l/min) |
| Dimensions (W × L × H) | 18 × 18.5 × 38 cm |
| Weight | 9.5 kg |
| Item code | XSP9-7.5-0.25I(220V) |
Performance Table
| Flow Q (m³/h) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 17 | 33 | 50 | 67 | 83 | 100 | 117 | 133 | 150 |
| Head H (m) | 7.2 | 6.9 | 6.6 | 6.2 | 5.7 | 5.1 | 4.3 | 3.4 | 2.4 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo XSP9-7.5-0.25I:
Leo XSP Technical Data & Hydraulic Pump Curve
175 kB | Download
Applications
- Wastewater drainage in factories, construction sites and commercial facilities
- Drainage system in municipal sewage treatment plants
- Drainage station in residential quarters
- Municipal projects
- Methane pools and field irrigation in countryside
Pump
- Max. immersion depth: 5 m
- Max. liquid temperature: +40ºC
- Liquid pH value: 4 ~ 10
- Liquid kinematic viscosity: 7x10 ~ 23x10 m2/s
- Max. liquid density: 1.2x103 kg/m3
Motor
- Copper winding
- Built-in thermal protector
- Stainless steel welded shaft
- Insulation class: B
- Protection class: IP68
Model Code: XSP9-7.5-0.25I(220V)
- XSP - Sewage Submersible Pumps
- 8 - Pump Body Material
- 7 - Max. Head (m)
- 0.18 - Power (kW)
- l - Max. Flow (m3/h)
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo XSP9-7.5-0.25I?
The Leo XSP9-7.5-0.25I has a maximum head of 7.2 m.
How much water can the Leo XSP9-7.5-0.25I pump?
The Leo XSP9-7.5-0.25I pumps up to 9 m³/h (150 l/min).
What power supply does the Leo XSP9-7.5-0.25I need?
Supply: 230 V single-phase, 50 Hz. Motor power: 0.25 kW.
