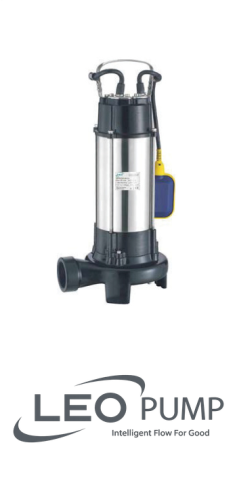

Leo XSP14-7-1.1ID / 1.1KW 230V Submersible Sewage Pump And Motor Cutting Blade
5195
The LEO XSP14-7/1.1ID is a robust sewage submersible pump engineered to handle demanding wastewater drainage applications across industrial, commercial, and municipal environments. Designed for factories, construction sites, residential drainage stations, and municipal sewage treatment plants, this pump delivers reliable performance in wastewater management systems where durability and dependability are non-negotiable.
Built with a stainless steel welded shaft and copper motor windings, the XSP14-7/1.1ID features a cutting blade design that efficiently processes solids-laden sewage while maintaining consistent flow up to 14 m3/h at 7 meters of head. Its IP68-rated motor housing, integrated thermal protector, and ability to operate in liquids ranging from pH 4-10 make it ideal for treatment plant drainage, methane pool evacuation, field irrigation, and anywhere submersible pumping of wastewater or slurry is required in challenging conditions.
At a glance
Power: 1.1 kWSupply: 230 V single-phase, 50 HzMax. head: 7 mMax. flow: 14.4 m³/h (240 l/min)Specifications
| Brand | Leo |
| Model | XSP14-7-1.1ID |
| Type | XSP Stainless Steel Sewage Submersible Pump |
| Motor power | 1.1 kW |
| Supply | 230 V single-phase, 50 Hz |
| Max. head (catalogue) | 7 m at 1.1 m³/h |
| Flow range | 1.1 – 14.4 m³/h (18 – 240 l/min) |
| Dimensions (W × L × H) | 30.5 × 56.5 × 24.5 cm |
| Weight | 22.5 kg |
| Item code | XSP14-7-1.1ID(220V) |
Performance Table
| Flow Q (m³/h) | 1.1 | 3 | 6 | 9 | 12 | 13.5 | 14.4 |
|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 18 | 50 | 100 | 150 | 200 | 225 | 240 |
| Head H (m) | 7 | 6.8 | 6.2 | 5.4 | 4.4 | 3.8 | 3.2 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo XSP14-7-1.1ID:
Leo XSP Technical Data & Hydraulic Pump Curve
161 kB | Download
Applications
- Wastewater drainage in factories, construction sites and commercial facilities
- Drainage system in municipal sewage treatment plants
- Drainage station in residential quarters
- Municipal projects
- Methane pools and field irrigation in countryside
Pump
- Max. immersion depth: 5 m
- Max. liquid temperature: +40 degC
- Liquid pH value: 4 ~ 10
- Liquid kinematic viscosity: 7x10 ~ 23x10 m2/s
- Max. liquid density: 1.2x103 kg/m3
Motor
- Copper winding
- Built-in thermal protector
- Stainless steel welded shaft
- Insulation class: B
- Protection class: IP68
Model Code: XSP14-7-1.1ID(220V)
- XSP - Sewage Submersible Pumps
- 14 - Max. Flow (m3/h)
- 7 - Max. Head (m)
- 1.1 - Power (kW)
- I - Pump Body Material
- D - Cutting Blade
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo XSP14-7-1.1ID?
The Leo XSP14-7-1.1ID has a maximum head of 7 m.
How much water can the Leo XSP14-7-1.1ID pump?
The Leo XSP14-7-1.1ID pumps up to 14.4 m³/h (240 l/min).
What power supply does the Leo XSP14-7-1.1ID need?
Supply: 230 V single-phase, 50 Hz. Motor power: 1.1 kW.
