Vansan VSP 7075-05 – 18.5KW Submersible Pump
5410

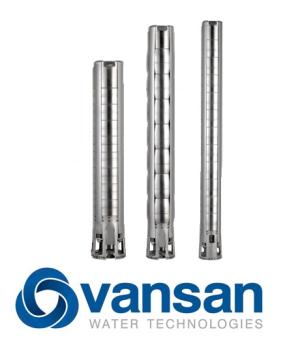

Vansan VSP 7075-05 – 18.5kW Stainless Steel 7" Submersible Borehole Pump
Vansan VSP stainless steel 7" submersible borehole pumps (172 mm) for high-flow irrigation and bulk water supply.
At a glance
Power: 18.5 kWMax. head: 56 mMax. flow: 100 m³/hConnections: 125mmSpecifications
| Brand | Vansan |
| Item code | VSP 7075-05 |
| Model | VSP 7075-05 |
| Nominal flow | 75 m³/h |
| Stages | 5 |
| Motor power | 18.5 kW |
| Horsepower | 25 HP |
| Outlet | 125mm |
| Packed size (L x W x H) | 90 x 21 x 21 cm |
| Shipping weight | 39 kg (approx.) |
| Range power | 4 - 110 kW |
| Nominal diameter | 7" (172 mm) |
| Range flow | 20 - 125 m³/h |
| Range max head | 550 m |
| Outlet | 5" (127 mm) |
| Impeller / diffuser | Stainless steel |
| Dimensions (W × L × H) | 21 × 90 × 21 cm |
Performance Table
| Flow (m³/h) | 24.0 | 36.0 | 48.0 | 56.0 | 64.0 | 72.0 | 80.0 | 88.0 | 96.0 | 100.0 |
|---|---|---|---|---|---|---|---|---|---|---|
| Head (m) | 56 | 55 | 54 | 53 | 52 | 50 | 47 | 44 | 40 | 38 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Vansan VSP 7075-05:
Vansan VSP SS 07075 Technical Data & Hydraulic Performance Curve
512 kB | Download
Vansan Submersible Water Filled Motor Technical Data
9 MB | Download
Features
- Model code: VSP SS 7075-07 = 7" pump, nominal capacity 75 m³/h, 7 stages
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Vansan VSP 7075-05?
The Vansan VSP 7075-05 has a maximum head of 56 m.
How much water can the Vansan VSP 7075-05 pump?
The Vansan VSP 7075-05 pumps up to 100 m³/h.
What is the motor power of the Vansan VSP 7075-05?
The motor power is 18.5 kW.
What are the pipe connections of the Vansan VSP 7075-05?
125mm.
