Vansan VSP 10210-07 – 129KW Submersible Pump
5473

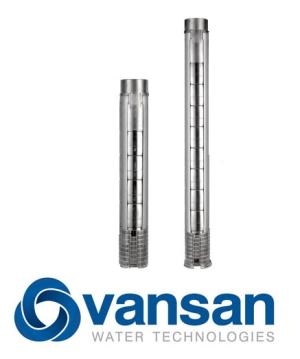

Vansan VSP 10210-07 – 129kW Stainless Steel 10" Submersible Borehole Pump
Vansan VSP stainless steel 10" submersible borehole pumps (247 mm) for very high flows from large boreholes.
Specifications
| Parameter | Value |
|---|---|
| Brand | Vansan |
| Item code | VSP 10210-07 |
| Model | VSP 10210-07 |
| Nominal flow | 210 m³/h |
| Stages | 7 |
| Motor power | 129 kW |
| Horsepower | 175 HP |
| Outlet | 150mm |
| Packed size (L x W x H) | 159 x 29 x 29 cm |
| Shipping weight | 134 kg (approx.) |
Range specifications
| Range power | 15 - 220 kW |
| Nominal diameter | 10" (247 mm) |
| Range flow | 200 - 290 m³/h |
| Range max head | 463 m |
| Outlet | 6" (152 mm) |
| Impeller / diffuser | Stainless steel |
Features
- Model code: VSP SS 10210-07 = 10" pump, nominal capacity 210 m³/h, 7 stages
Performance
| Flow (m³/h) | 30.0 | 54.0 | 72.0 | 108.0 | 144.0 | 180.0 | 216.0 | 252.0 | 270.0 |
|---|---|---|---|---|---|---|---|---|---|
| Head (m) | 272 | 258 | 247 | 225 | 201 | 183 | 161 | 127 | 110 |
Approximate head at flow, read from the Vansan VSP SS 10210 performance curve and scaled per stage (2900 rpm, 50 Hz). Values are indicative only.
Complete Specifications, Sizing and Price Guide Click Here.
Vansan VSP SS 10210 Technical Data & Hydraulic Performance Curve
497 kB | Download
Vansan Submersible Water Filled Motor Technical Data
9 MB | Download
