Vega 20Y Intelligent Pump Controllers – 230V Single Phase
Vega 20Y intelligent pump controllers – 230V

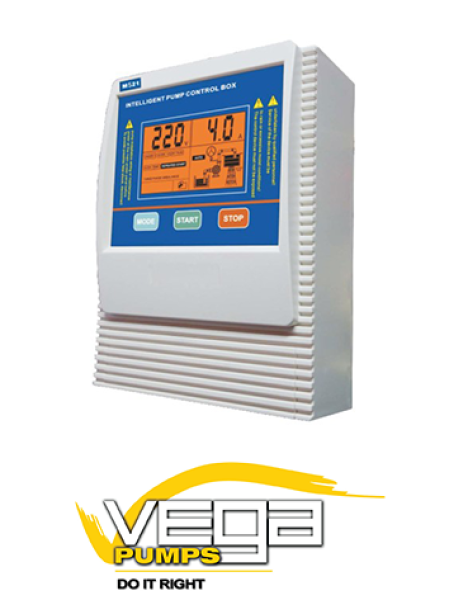

The Vega 20Y is a digital pump controller for 230V single-phase submersible and surface pumps from 0.37 kW to 2.2 kW. It protects against dry running, overload, over- and under-voltage and short circuit, restarts automatically after a dry-run, and can switch on a float switch or pressure switch. 6 sizes.
| Motors | 0.37 – 2.2 kW, single-phase |
| Supply | 230V, 50 Hz |
| Protection | dry run, overload, over/under voltage, short circuit |
| Control | float switch, pressure switch, timer |
| Sizes | 6 |
How to choose: choose the controller for the exact motor kW.
| Complete Specifications, Sizing and Price Guide – Click Here |
| Vega 20Y Intelligent Pump Controller Technical Data PDF, 5072 kB | Download |
- Vega 20Y Intelligent Pump Controller 0.37kW (230V)
R 1,681.87The Vega 20Y intelligent water pump controller is a single-phase LCD controller with built-in start capacitor (20 µF) for 0.37 kW deep-well submersible pumps. Non-contact current sensing detects dry running without probes, so the pump shuts down automatically when the ... - Vega 20Y Intelligent Pump Controller 0.55kW (230V)
R 1,681.87The Vega 20Y intelligent water pump controller is a single-phase LCD controller with built-in start capacitor (25 µF) for 0.55 kW deep-well submersible pumps. Non-contact current sensing detects dry running without probes, so the pump shuts down automatically when the ... - Vega 20Y Intelligent Pump Controller 0.75kW (230V)
R 1,681.87The Vega 20Y intelligent water pump controller is a single-phase LCD controller with built-in start capacitor (35 µF) for 0.75 kW deep-well submersible pumps. Non-contact current sensing detects dry running without probes, so the pump shuts down automatically when the ... - Vega 20Y Intelligent Pump Controller 1.1kW (230V)
R 1,681.87The Vega 20Y intelligent water pump controller is a single-phase LCD controller with built-in start capacitor (45 µF) for 1.1 kW deep-well submersible pumps. Non-contact current sensing detects dry running without probes, so the pump shuts down automatically when the ... - Vega 20Y Intelligent Pump Controller 1.5kW (230V)
R 1,681.87The Vega 20Y intelligent water pump controller is a single-phase LCD controller with built-in start capacitor (55 µF) for 1.5 kW deep-well submersible pumps. Non-contact current sensing detects dry running without probes, so the pump shuts down automatically when the ... - Vega 20Y Intelligent Pump Controller 2.2kW (230V)
R 1,681.87The Vega 20Y intelligent water pump controller is a single-phase LCD controller with built-in start capacitor (75 µF) for 2.2 kW deep-well submersible pumps. Non-contact current sensing detects dry running without probes, so the pump shuts down automatically when the ...
