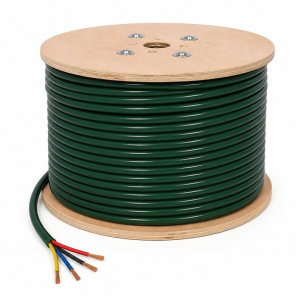

Submersible Cable 1.5mm² 4 Core Green – Short Drum Specials
1.5 mm² four-core round dark-green cable for small three-phase (380 V) submersible pumps. Max 16 A; 25 mV/A/m volt drop; 17.70 kg per 100 m. Round construction, SANS 1574-3, 600/1000 V, waterproof PVC insulation and sheath, class 5 flexible copper. These are short drums – ends of production runs sold complete at a reduced per-metre price; pick the length that suits your borehole.
Size on the pump's full-load current and total run, keeping volt drop under 5%. Not sure? Send us the pump model and borehole depth – sizing advice is free on 082 516 2248.
Models in this category
- 4 Core x 1.5mm² Green – 150m Short Drum – 26.6 kg – R 4 232.72
- 4 Core x 1.5mm² Green – 200m Short Drum – 35.4 kg – R 5 643.62
- 4 Core x 1.5mm² Green – 250m Short Drum – 44.2 kg – R 7 054.53
- 4 Core x 1.5mm² Green – 300m Short Drum – 53.1 kg – R 8 465.44
- 4 Core x 1.5mm² Green – 450m Short Drum – 79.7 kg – R 12 698.16
Prices include VAT and run from R 4 232.72 to R 12 698.16. Stock subject to availability – once a drum is sold it's gone.
Complete Specifications, Sizing and Price Guide Click Here.
- Submersible Pump Cable 4 Core x 1.5mm² Green – 450m Short Drum
R 12,698.15450 m drum of round green submersible borehole pump cable, 4 core x 1.5mm², manufactured to SANS 1574-3. Class 5 flexible copper conductors with waterproof PVC insulation and sheath rated for continuous immersion. Short-drum special – clearance stock sold as ... - Submersible Pump Cable 4 Core x 1.5mm² Green – 300m Short Drum
R 8,465.43300 m drum of round green submersible borehole pump cable, 4 core x 1.5mm², manufactured to SANS 1574-3. Class 5 flexible copper conductors with waterproof PVC insulation and sheath rated for continuous immersion. Short-drum special – clearance stock sold as ... - Submersible Pump Cable 4 Core x 1.5mm² Green – 250m Short Drum
R 7,054.53250 m drum of round green submersible borehole pump cable, 4 core x 1.5mm², manufactured to SANS 1574-3. Class 5 flexible copper conductors with waterproof PVC insulation and sheath rated for continuous immersion. Short-drum special – clearance stock sold as ... - Submersible Pump Cable 4 Core x 1.5mm² Green – 200m Short Drum
R 5,643.62200 m drum of round green submersible borehole pump cable, 4 core x 1.5mm², manufactured to SANS 1574-3. Class 5 flexible copper conductors with waterproof PVC insulation and sheath rated for continuous immersion. Short-drum special – clearance stock sold as ... - Submersible Pump Cable 4 Core x 1.5mm² Green – 150m Short Drum
R 4,232.71150 m drum of round green submersible borehole pump cable, 4 core x 1.5mm², manufactured to SANS 1574-3. Class 5 flexible copper conductors with waterproof PVC insulation and sheath rated for continuous immersion. Short-drum special – clearance stock sold as ...
