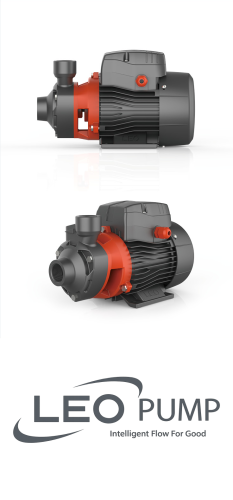

Leo APm37 / 0.37KW 230V Peripheral Pump And Motor
10621
The LEO APm37 is a compact peripheral pump engineered for reliable water transfer across residential and light commercial applications. Ideal for domestic water supply systems, automatic garden sprinklers, and air conditioning units, this single-phase pump delivers consistent performance for moving clean water and similar liquids with minimal fuss.
Built with anti-rust treated cast iron construction and a durable brass impeller paired with an AISI 304 stainless steel shaft, the APm37 is designed to withstand years of regular use in demanding environments. Its low-noise motor features copper windings, long-life bearings, and an integrated thermal protector, while the IPX4 enclosure rating ensures protection against water splash-making it an ideal choice for outdoor installations and wet locations where durability and efficiency matter.
At a glance
Power: 0.37 kW (0.5 HP)Supply: 230 V single-phase, 50 HzMax. head: 40 mMax. flow: 2.1 m³/h (35 l/min)Connections: 1"Specifications
| Brand | Leo |
| Model | APm37 |
| Type | APm Peripheral Pump |
| Motor power | 0.37 kW (0.5 HP) |
| Supply | 230 V single-phase, 50 Hz |
| Inlet / outlet | 1" |
| Shut-off head | 40 m |
| Flow range | 0 – 2.1 m³/h (0 – 35 l/min) |
| Dimensions (W × L × H) | 15.8 × 28.3 × 17.4 cm |
| Weight | 5.85 kg |
| Item code | APm37(220V) |
Performance Table
| Flow Q (m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 |
|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 |
| Head H (m) | 40 | 35 | 30 | 25 | 20 | 15 | 10 | 5 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo APm37:
Leo APm Peripheral Pump – Performance Curves and Technical Data (01-DOMESTIC PUMP catalogue p8)
367 kB | Download
Applications
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
Pump
- Special anti-rust treatment for cast iron pump body and support
- Brass impeller
- AISI 304 shaft
- Max. liquid temperature: +60 degC
- Max. suction: 8 m
Motor
- Low noise&Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX4
- Max. ambient temperature: +50 degC
- IE 2 motor (AP110, AP150)
Model Code: APm37(220V)
- A - LEO Product Style
- P - Peripheral Pump
- m - Single Phase Motor (Omitted for three-phase motor)
- 37 - Power(x10 W)
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo APm37?
The Leo APm37 has a maximum head of 40 m.
How much water can the Leo APm37 pump?
The Leo APm37 pumps up to 2.1 m³/h (35 l/min).
What power supply does the Leo APm37 need?
Supply: 230 V single-phase, 50 Hz. Motor power: 0.37 kW (0.5 HP).
What are the pipe connections of the Leo APm37?
1".
