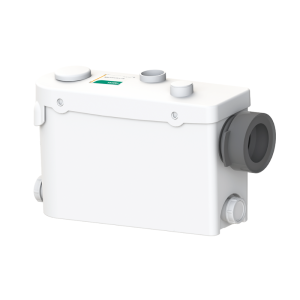

Wilo HiSewlift 3-I35 / 0.4kW Lifting Unit
11176
The Wilo HiSewlift 3-I35 is a lifting unit from the Wilo HiDrainlift & HiSewlift 3 range with a 0.4 kW motor rating. Small sewage lifting unit with macerator.
Applications
- Pumping of sewage containing faeces (according to DIN EN 12050-3) that cannot be piped to the sewer system through the use of natural falls
Features
- HiSewlift 3-I35 in particularly narrow version (less than 149 mm width) for a simple front-wall installation
- Low-noise operation and installed active carbon filter for high user comfort
- Reliable capacity and low electricity consumption for efficient sewage disposal a
- Simple installation with flexible connection options
- Ready for connection
Specifications
| Parameter | Value |
|---|---|
| Brand | Wilo |
| Item code | 4191674 |
| Model | HiSewlift 3-I35 |
| Series | Wilo HiDrainlift & HiSewlift 3 |
| Type | lifting unit |
| inlet without packaging L | 149 |
| Height (mm) | 378 |
| length L | 520 |
| Mains connection | 1~230 V, 50 Hz |
| Maximum operating pressure PN | 1 bar |
| Min. fluid temperature Tmin | 5 °C |
| Max. fluid temperature Tmax | 35 °C |
| Min. ambient temperature Tmin | 5 °C |
| Max. ambient temperature Tmax | 40 °C |
| Max. fluid temperature, for short periods up to 5 min. T | 35 °C |
| Sound-pressure level | 52.4 |
| Switching volume V | 1 l |
| Macerator | yes |
| Voltage tolerance | ±10 % |
| Rated power P2 | 0.4 kW |
| Rated speed n | 2900 1/min |
| Rated current IN | 1.9 A |
| Insulation class | F |
| Protection class motor | IP44 |
| Max. switching frequency t | 100 rph |
| Tank | PP |
| Pump housing | PP-GF30 |
| Impeller | PA66-GF15 |
| Pipe connection, suction side | DN40 |
| Pipe connection, discharge side | DN32 |
| Previous model article number | 2526945 |
| Previous model designation | DrainLift XS-F |
| Successor model article number | 6095128 |
| Successor model designation | DrainLift MINI3-XS/WC-EF |
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 520 mm |
| Width W | 149 mm |
| Height H | 378 mm |
| Net weight (approx.) | 5.4 kg |
| Gross weight (approx.) | 7.1 kg |
| Length with packaging | 571 mm |
| Width with packaging | 194 mm |
| Height with packaging | 345 mm |
Data from the Wilo online catalogue and the Wilo South Africa price list. Specifications may change without notice.
