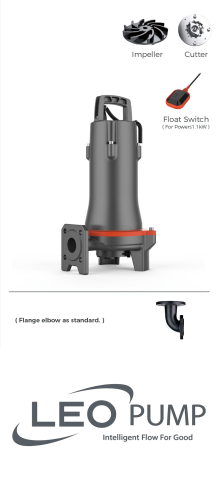

Leo 32SWP3.6-30-2.2 / 2.2KW 230V Submersible Sewage Pump And Motor Cutting Blade
12160
The LEO 32SWP3.6-30-2.2(QG) is a high-pressure submersible sewage grinder pump delivering 3.6 m³/h at 30 m head with a 2.2 kW motor, suited for demanding pressure sewage systems in commercial and municipal wastewater applications. Its semi-open vortex impeller combined with a cutting blade ensures reliable performance when handling fibrous materials and solids in municipal and industrial sewage systems.
At a glance
Power: 2.2 kW (3 HP)Supply: 230 V single-phase, 50 HzMax. head: 30.2 mMax. flow: 12 m³/h (200 l/min)Connections: Outlet 32 (1 1/4")Specifications
| Brand | Leo |
| Model | 32SWP3.6-30-2.2 |
| Type | SWP Submersible Grinder Sewage Pump (cutting blade) 32SWP |
| Motor power | 2.2 kW (3 HP) |
| Supply | 230 V single-phase, 50 Hz |
| Connection | Outlet 32 (1 1/4") |
| Shut-off head | 30.1 m |
| Flow range | 0 – 12 m³/h (0 – 200 l/min) |
| Dimensions (W × L × H) | 28.4 × 92.4 × 36.3 cm |
| Weight | 41.1 kg |
| Item code | 32SWP3.6-30-2.2(QG)(220V) |
Performance Table
| Flow Q (m³/h) | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 17 | 33 | 50 | 67 | 83 | 100 | 117 | 133 | 150 | 167 | 183 | 200 |
| Head H (m) | 30.1 | 30.2 | 30.2 | 30.1 | 30 | 29.8 | 29.6 | 29.3 | 28.9 | 28.4 | 27.8 | 26.9 | 25.9 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo 32SWP3.6-30-2.2:
Leo SWP Submersible Grinder Sewage Pump (cutting blade) 32SWP – Performance Curves and Technical Data (03-SUBMERSIBLE PUMP catalogue p10)
312 kB | Download
Applications
- Used in pressure sewage system
- Drainage of wastewater from individual residences, apartment buildings, recreational developments, motels
- Transferring wastewater of commercial buildings, industrial plants, wastewater sampling, small hospitals
- Schools, federal, state and local parks, wastewater drainage
- To transfer various wastewater and sewage
Pump
- Semi-open vortex impeller & reliable grinding system
- Flexible installations with hoses, pipes or quick-coupling systems
- Float switch as standard accessory for single phase (≤1.1 kW)
- Cable Length: 10 m
- Double-end mechanical seal
- Stainless steel welded shaft
- Liquid temperature: 0 – 40°C
- Liquid PH value: 4 – 10
- Max. immersion depth: 10 m
Motor
- Frequency/Pole number: 50 Hz/2
- Insulation class: F
- Enclosures class: IP68
- Bearing: Ball type
Model Code: 32SWP3.6-30-2.2(QG)(220V)
- 32 = Discharge Diameter (mm)
- SW = Submersible Sewage Pump
- P = Semi-open Vortex Impeller with Cutting System
- m = Single Phase Motor (Omitted for three-phase motor)
- Flow = Rated Flow (m³/h)
- Head = Rated Head (m)
- Power = Rated Power (kW)
- L = Cable Length (10 m)
- /QG = Cutting Blade
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo 32SWP3.6-30-2.2?
The Leo 32SWP3.6-30-2.2 has a maximum head of 30.2 m.
How much water can the Leo 32SWP3.6-30-2.2 pump?
The Leo 32SWP3.6-30-2.2 pumps up to 12 m³/h (200 l/min).
What power supply does the Leo 32SWP3.6-30-2.2 need?
Supply: 230 V single-phase, 50 Hz. Motor power: 2.2 kW (3 HP).
What are the pipe connections of the Leo 32SWP3.6-30-2.2?
Outlet 32 (1 1/4").
