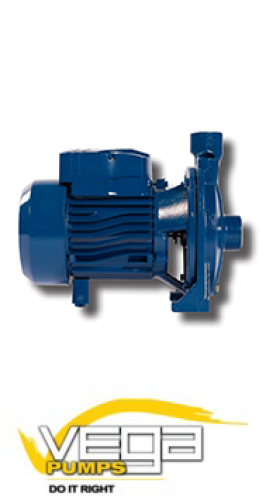

Vega CP170 Centrifugal – 1.1kW (380V) End-Suction Single Stage CPM Range » Buy online now for only R 4,176.03 incl. VAT
14553
Description
The Vega CP Single-Stage Centrifugal Pump is an ideal pressure boosting centrifugal pump for the transfer of clean liquids. The 1.1kw can deliver a flow up to 120L/min and pressure up to 4.4 Bar. The single phase (220V) units is available in a combo that includes a flow control switch and lead out cable. When the pressure drops, this switch automatically starts the pump, then turns it off when there is no flow
Application
- This range is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials of which the pump is made. Due to their reliability, simplicity of use and economy, they are suitable for domestic use and in particular for irrigating and pressure boosting systems. The pump must be installed under a vented cover and protected against exposure to rain or water spray.
Construction characteristics
- Pump Body: Cast Iron
- Impeller: Brass
- Motor Shaft: Stainless Steel 304
- Mechanical Seal: Ceramic-graphite
- CP: Three-phase380/400v -50Hz
- Insulation: Class B
- Protection: IP44
