Vega 200B422 – 22kW Sewage Pump Cast Iron B (380 – 415V) » Buy online now for only R 80,077.56 incl. VAT

R 80,077.56 incl. VATAdd to Basket

Average Delivery Time:

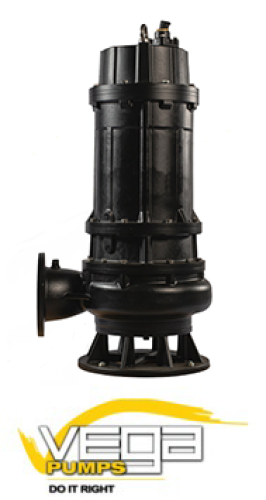

Vega 200B422 – 22kW Sewage Pump Cast Iron B (380 – 415V) image 1

Description

High flow heavy duty submersible sewage pumps designed for freestanding as well as guide rail and duckfoot installations in the mining, municipal, abattoir and agricultural industries. These sewage submersible pumps are designed with an inlet cutter plate and a single channel impeller that allows for pumping of stringy solids.

Application

  • Maximum Head: 42m
  • Maximum Flow: 550m³/h
  • Power: 5.5-22kW
  • Motor Speed: 2 Pole / 4 Pole

Specification

  • Liquid temperature: up to 40°C
  • Density of liquid: 1.3g/cm3
  • PH: 6 to 10
  • Protection class: IP68, Class F
  • Maximum immersion depth: 20m
  • Cable length: 8m

Construction characteristics

  • Cast iron pump construction.
  • Cast iron impeller construction, open type single channel.
  • Integrated cutter mechanism located on pump inlet.
  • Double mechanical shaft seal (silicon carbide-silicon carbide/carbon graphite-ceramic).
