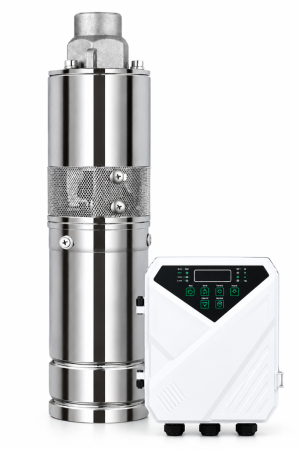

Difful 3DSS1.7-109-48-500 / 500W DC Solar System (Pump-Motor-Controlbox 65m Submersible Borehole Cable)

The Difful 3DSS1.7-109-48-500 is a 3"/4" Brushless Screw Solar Pump supplied as a complete DC solar system (pump, brushless motor and solar controller). Rated at 500W on 48V, it delivers a maximum flow of 1.7m3/h and a maximum head of 109m through a 3/4" outlet. Driven directly from a solar array, it runs without batteries or mains power.

Application

• Domestic water supply
• Agricultural irrigation
• Livestock drinking water
• Deep-well and borehole

Pump Features

• Permanent magnet DC brushless motor
• CU Japanese bearing structure
• Double mechanical seals
• Sacrificial anode
• 3" & 4" Screw pump

Solar Controller

• Protection class: IP65
• Ambient temperature: -15°C ~ 60°C
• LED displays working conditions & fault codes
• Auto start & stop
• Soft start

Kit Includes

• Stainless steel oil cylinder
• CU / NSK Bearings double bearing arrangement
• Positive displacement Rotor & Stator

Specifications

Performance
