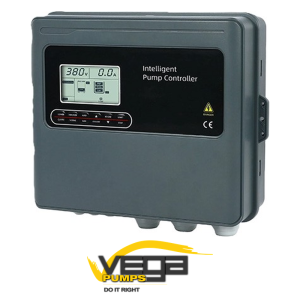

Vega 30Y Intelligent Pump Controller 5.5-15 kW (380V)
15984
The Vega 30Y intelligent water pump controller is a three-phase single-pump controller for 5.5 – 15 kW 6" and larger borehole motors. It detects dry running by monitoring motor current and protects the motor against phase loss, voltage faults and overload.
Protection & Control
- Dry-run, overload and phase-loss protection
- Voltage protection range 304–456 V
- Float switch, electrode probe or pressure control
- Timer on/off (0–48 h / 0–480 min)
- Voltage, current and reservoir-level display
Specifications
| Parameter | Value |
|---|---|
| Brand | Vega |
| Item code | 10070082 |
| Type | 30Y three-phase intelligent pump controller |
| Motor power | 5.5 – 15 kW |
| Voltage | AC 380 V ±10%, 50 Hz |
