Orbit PP5402 Mk2 Power Pump Progressive Cavity Pump / 100mm BS4504 Flanges
17699

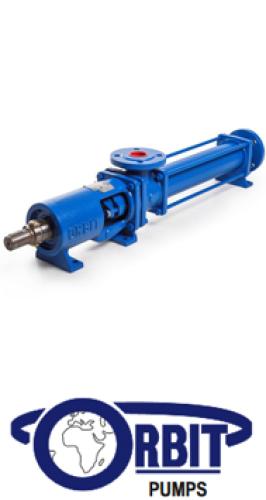

The Orbit PP5402 Mk2 is an Orbit PP5402 Mk2 horizontal power pump (progressive cavity).
At a glance
Power: 5 kW at 0 m to 22.5 kW at 150 mMax. head: 150 mMax. flow: 48 m³/hConnections: 100 mm BS 4504 flangesBest for: High-flow, high-head water transfer, Irrigation and dam-to-land pumping, Engine or motor driven farm pumpingSpecifications
| Brand | Orbit |
| Item code | 830009543 |
| Model | Orbit PP5402 Mk2 |
| Type | Horizontal high-head progressive cavity pump (bareshaft – motor, drive and baseplate sold separately) |
| Inlet / outlet | 100 mm BS 4504 flanges |
| Maximum differential head | 150 m |
| Speed range | 500–850 rpm (belt drive or direct coupled 4-pole motor) |
| Flow at top speed | 48 m³/h at 0 m to 36.5 m³/h at 150 m (850 rpm) |
| Flow at lowest speed | 28.5 m³/h at 0 m to 17 m³/h at 150 m (500 rpm) |
| Power at top speed | 5 kW at 0 m to 22.5 kW at 150 m |
| Minimum motor size | 5.5 kW |
| Minimum starting torque | 62 Nm |
| NPSH required | 1.8 m at half flow, 4.8 m at full flow |
| Rotation | Counter-clockwise only, delivery on the gland side |
| Rotor / stator | Nitrile rubber stator, tested on water at 20 °C |
| Equivalent | Mono HD175M Mk2 HD pump |
Performance Table
| Head (m) | 0 | 38 | 75 | 112 | 150 |
|---|---|---|---|---|---|
| Flow at 850 rpm (m³/h) | 48 | 45.1 | 42.2 | 39.4 | 36.5 |
| Flow at 500 rpm (m³/h) | 28.5 | 25.6 | 22.8 | 19.9 | 17 |
| Power at 850 rpm (kW) | 5 | 9.4 | 13.8 | 18.1 | 22.5 |
| NPSH required at 850 rpm (m) | 4.8 | 4.2 | 3.6 | 3.1 | 2.8 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Orbit PP5402 Mk2 Power Pump Progressive Cavity Pump:
Orbit PP5402 Mk2 Performance Curve and NPSH
532 kB | Download
Applications
- High-flow, high-head water transfer
- Irrigation and dam-to-land pumping
- Engine or motor driven farm pumping
Features
- Helical rotor gives steady flow against high head
- Bearing housing with solid drive shaft
- Flanged ports to BS 4504
- Tolerates sand and silt
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Orbit PP5402 Mk2 Power Pump Progressive Cavity Pump?
The Orbit PP5402 Mk2 Power Pump Progressive Cavity Pump has a maximum head of 150 m.
How much water can the Orbit PP5402 Mk2 Power Pump Progressive Cavity Pump pump?
The Orbit PP5402 Mk2 Power Pump Progressive Cavity Pump pumps up to 48 m³/h.
What is the motor power of the Orbit PP5402 Mk2 Power Pump Progressive Cavity Pump?
The motor power is 5 kW at 0 m to 22.5 kW at 150 m.
What are the pipe connections of the Orbit PP5402 Mk2 Power Pump Progressive Cavity Pump?
100 mm BS 4504 flanges.
