Orbit PP5403 Mk2 Power Pump Progressive Cavity Pump / 100mm BS4504 Flanges
17700

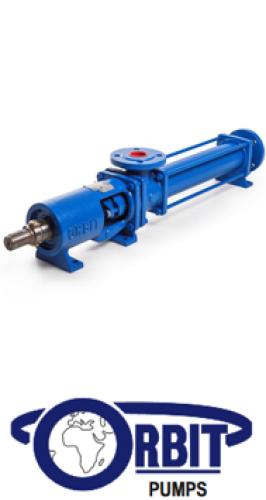

The Orbit PP5403 Mk2 is an Orbit PP5403 Mk2 horizontal power pump (progressive cavity).
At a glance
Power: 6.5 kW at 0 m to 28 kW at 225 mMax. head: 225 mMax. flow: 39.5 m³/hConnections: 100 mm BS 4504 flangesBest for: High-flow, high-head water transfer, Irrigation and dam-to-land pumping, Engine or motor driven farm pumpingSpecifications
| Brand | Orbit |
| Item code | 830009546 |
| Model | Orbit PP5403 Mk2 |
| Type | Horizontal high-head progressive cavity pump (bareshaft – motor, drive and baseplate sold separately) |
| Inlet / outlet | 100 mm BS 4504 flanges |
| Maximum differential head | 225 m |
| Speed range | 500–700 rpm (belt drive or direct coupled 4-pole motor) |
| Flow at top speed | 39.5 m³/h at 0 m to 27.5 m³/h at 225 m (700 rpm) |
| Flow at lowest speed | 28.5 m³/h at 0 m to 17 m³/h at 225 m (500 rpm) |
| Power at top speed | 6.5 kW at 0 m to 28 kW at 225 m |
| Minimum motor size | 11 kW |
| Minimum starting torque | 71 Nm |
| NPSH required | 1.5 m at half flow, 3.1 m at full flow |
| Rotation | Counter-clockwise only, delivery on the gland side |
| Rotor / stator | Nitrile rubber stator, tested on water at 20 °C |
| Equivalent | Mono HD160MH Mk2 HD pump |
Performance Table
| Head (m) | 0 | 56 | 112 | 169 | 225 |
|---|---|---|---|---|---|
| Flow at 700 rpm (m³/h) | 39.5 | 36.5 | 33.5 | 30.5 | 27.5 |
| Flow at 500 rpm (m³/h) | 28.5 | 25.6 | 22.8 | 19.9 | 17 |
| Power at 700 rpm (kW) | 6.5 | 11.9 | 17.2 | 22.6 | 28 |
| NPSH required at 700 rpm (m) | 3.1 | 2.8 | 2.6 | 2.3 | 2.1 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Orbit PP5403 Mk2 Power Pump Progressive Cavity Pump:
Orbit PP5403 Mk2 Performance Curve and NPSH
533 kB | Download
Applications
- High-flow, high-head water transfer
- Irrigation and dam-to-land pumping
- Engine or motor driven farm pumping
Features
- Helical rotor gives steady flow against high head
- Bearing housing with solid drive shaft
- Flanged ports to BS 4504
- Tolerates sand and silt
