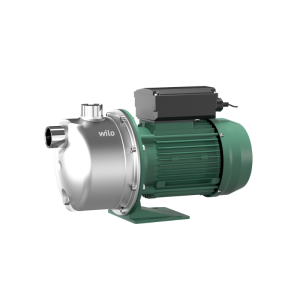

Wilo Jet WJ 202 X-1 (1~230 V) / 0.55kW Self-Priming Stainless Steel Jet Pump
18523
The Wilo Jet WJ 202 X-1 (1~230 V) is a self-priming stainless steel jet pump from the Wilo Jet WJ range with a 0.55 kW motor rating. Self-priming multistage centrifugal pumps.
Applications
- Pumping water from wells
- Filling, pumping empty, transferring by pumping, irrigation and sprinkling
- As emergency pump for overflows
Features
- User-friendly thanks to its light weight, compact size and practical carrying handle
- High supply guarantee due to hydraulic output, self-priming up to 8 m (also at a low flow rate)
- Robust stainless steel construction for durable operation, impeller, shaft and housing made of AISI 304
- IE3-IEC three-phase AC motor (≥ 0.75 kW)
Specifications
| Parameter | Value |
|---|---|
| Brand | Wilo |
| Item code | 4081221 |
| Model | Jet WJ 202 X-1 (1~230 V) |
| Series | Wilo Jet WJ |
| Type | self-priming stainless steel jet pump |
| Mains connection | 1~230 V, 50 Hz |
| Rated power P2 (kW) | 0.55 |
| Min. fluid temperature Tmin | 5 °C |
| Max. fluid temperature Tmax | 35 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 40 °C |
| Maximum operating pressure PN | 6 bar |
| Pipe connection, suction side DNs | G 1 |
| Pipe connection, discharge side DNd | G 1 |
| Voltage tolerance | ±6 % |
| Rated power P2 | 0.55 kW |
| Rated current IN | 4 A |
| Rated speed n | 2900 1/min |
| Insulation class | B |
| Protection class | IP44 |
| Discharge port | G 1 |
| Pump housing | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | CVPFF |
| Gasket material | NBR |
| Impeller | Stainless steel |
| Successor model article number | 4262915 |
| Successor model designation | Jet WJ 202 X (1~230 V) |
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 226 mm |
| Width W | 184 mm |
| Height H | 226 mm |
| Net weight (approx.) | 8.9 kg |
| Gross weight (approx.) | 10.2 kg |
| Length with packaging | 372 mm |
| Width with packaging | 200 mm |
| Height with packaging | 266 mm |
Data from the Wilo online catalogue and the Wilo South Africa price list. Specifications may change without notice.
