Wilo Jet FWJ 202 / 0.55kW Self-Priming Water Supply Unit

R 4,858.75 incl. VATAdd to Basket

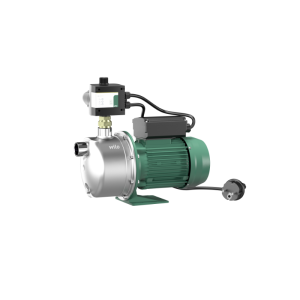

Wilo Jet FWJ 202 / 0.55kW Self-Priming Water Supply Unit image 1

The Wilo Jet FWJ 202 is a self-priming water-supply unit with HiControl from the Wilo Jet FWJ range with a 0.55 kW motor rating. Self-priming water-supply units.

Specifications

BrandWilo
Item code2543629
ModelJet FWJ 202
SeriesWilo Jet FWJ
Typeself-priming water-supply unit with HiControl
Connection1~230 V, 50 Hz
Rated power P20.55 kW
Maximum operating pressure PN6 bar
Discharge portG 1
Min. fluid temperature Tmin5 °C
Max. fluid temperature Tmax35 °C
Min. ambient temperature Tmin3 °C
Max. ambient temperature Tmax40 °C
Mains connection1~230 V, 50 Hz
Voltage tolerance±6 %
Power factor cos φ1000.98
Rated power P20.55 kW
Rated current IN4 A
Rated speed n2900 1/min
Insulation classB
Protection classIP44
Pump housingStainless steel
ImpellerStainless steel
ShaftStainless steel
Shaft sealCVPFF
Gasket materialNBR
Pipe connection, suction side DNsG 1
Pipe connection, discharge side DNdG 1
Dimensions (W × L × H)28 × 48 × 49 cm
Weight14.3 kg

Applications

  • For pumping water and rainwater from wells and tanks for:
  • Sprinkling
  • Irrigation and spraying

Features

  • Ideal for use in outside areas (hobby, garden) thanks to durable construction; continuously good performance thanks to corrosion-free materials
  • Completely preassembled system, simple installation and maintenance through Plug&Pump system and 360° rotatable display, which means that it can be read from any direction
  • Electronic pump control
  • High operational reliability thanks to dry-running protection
  • Optional carrying handle

Dimensions & Weight

DimensionValue
Length L354 mm
Width W208 mm
Height H390 mm
Net weight (approx.)11.7 kg
Gross weight (approx.)14.3 kg
Length with packaging480 mm
Width with packaging280 mm
Height with packaging490 mm

Data from the Wilo catalogue. Specifications may change without notice.
