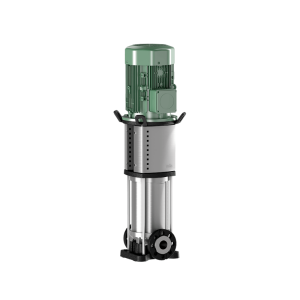

Wilo Helix V 3603-1/16/E/KS/400-50 / 9kW Vertical Multistage Pump
18604
The Wilo Helix V 3603-1/16/E/KS/400-50 is a vertical multistage high-pressure centrifugal pump from the Wilo Helix V range with a 9 kW motor rating. Non-self-priming, high-efficiency multistage highpressure centrifugal pump in vertical design with in-line connections.
At a glance
Power: 9 kWSupply: ±10 %Max. head: 77.9 mMax. flow: 6 m³/hConnections: 10 barBest for: Water supply and pressure boosting, Industrial circulation systems, Process waterSpecifications
| Brand | Wilo |
| Item code | 4198476 |
| Model | Helix V 3603-1/16/E/KS/400-50 |
| Series | Wilo Helix V |
| Type | vertical multistage high-pressure centrifugal pump |
| Pressure port | DN65 |
| Rated power P2 | 9 kW |
| Minimum efficiency index (MEI) | 0.7 |
| Maximum inlet pressure p inl | 10 bar |
| Maximum operating pressure PN | 16 bar |
| Discharge port | DN 65 |
| Min. fluid temperature Tmin | -20 °C |
| Max. fluid temperature Tmax | 120 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Mains connection | 3~400 V, 50 Hz |
| Voltage tolerance | ±10 % |
| Rated power P2 | 9 kW |
| Motor efficiency class | IE3 |
| Rated current IN | 16.7 A |
| Rated speed n | 2926 1/min |
| Power factor cos φ100 | 0.87 |
| Motor efficiency 50% ηM 50% | 90.4 % |
| Motor efficiency 75% ηM 75% | 91 % |
| Motor efficiency 100% ηM 100% | 90.6 % |
| Insulation class | F |
| Protection class | IP55 |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1EGG |
| Gasket material | EPDM |
| Stage chamber material | Stainless steel |
| Pipe connection, suction side DNs | DN 65 |
| Dimensions (W × L × H) | 46.5 × 161.6 × 63 cm |
| Weight | 127 kg |
Performance Table
| Flow (m³/h) | 0.02 | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| Head (m) | 76.9 | 77.6 | 77.9 | 77.9 | 77.9 | 77.9 | 77.9 |
| Shaft power P2 (kW) | – | – | – | – | – | – | 37.4 |
| Hydraulic efficiency (%) | – | – | – | – | – | – | – |
| NPSH required (m) | 24.5 | 24.5 | 24.6 | 24.8 | 24.9 | 25 | 25.1 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Helix V 3603-1/16/E/KS/400-50:
Wilo Helix V 3603 Performance Curve (50 Hz)
28 kB | Download
Applications
- Water supply and pressure boosting
- Industrial circulation systems
- Process water
- Closed cooling circuits
- Fire extinguishing systems
- Washing systems
- Irrigation
Features
- Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised
- Corrosion-resistant impellers, guide vanes and stage housings
- Flow and NPSH-optimised pump housing
- Maintenance-friendly design with particularly robust coupling guard
- Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 320 mm |
| Width W | 296 mm |
| Height H | 1116 mm |
| Net weight (approx.) | 105 kg |
| Gross weight (approx.) | 127 kg |
| Length with packaging | 1616 mm |
| Width with packaging | 465 mm |
| Height with packaging | 630 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Helix V 3603-1/16/E/KS/400-50?
The Wilo Helix V 3603-1/16/E/KS/400-50 has a maximum head of 77.9 m.
How much water can the Wilo Helix V 3603-1/16/E/KS/400-50 pump?
The Wilo Helix V 3603-1/16/E/KS/400-50 pumps up to 6 m³/h.
What power supply does the Wilo Helix V 3603-1/16/E/KS/400-50 need?
Supply: ±10 %. Motor power: 9 kW.
What are the pipe connections of the Wilo Helix V 3603-1/16/E/KS/400-50?
10 bar.
