Wilo Economy CO-1 Medana CH1-L 605-CE+ Pressure Booster Set – 400V

R 47,461.21 incl. VATAdd to Basket

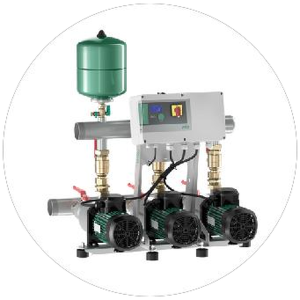

Wilo Economy CO-1 Medana CH1-L 605-CE+ Pressure Booster Set – 400V image 1

The Wilo Economy CO-1 Medana CH1-L 605-CE+ is a pressure boosting system from the Wilo Economy CO-Medana CE+ range. Pressure-boosting system with two or three non-selfpriming stainless steel high-pressure multistage centrifugal pumps switched in parallel. Supplied as a factory-assembled set with 1 pump(s).

At a glance

Max. head: 59 mMax. flow: 10 m³/hSupply: 400 V three-phase

Specifications

BrandWilo
Item code2801129A
ModelEconomy CO-1 Medana CH1-L 605-CE+
Supply400 V three-phase
SeriesWilo Economy CO-Medana CE+
Typepressure boosting system
Number of pumps1

Performance Table

Flow (m³/h)0.6246810
Head (m)595854.548.738.721.1
Shaft power P2 (kW)0.750.941.221.431.551.53
Hydraulic efficiency (%)153752595740
NPSH required (m)2.392.921.611.564.659.93

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Economy CO-1 Medana CH1-L 605-CE+ Pressure Booster Set:



Wilo Medana CH1-L 605 Performance Curve (50 Hz)

29 kB  |  Download

Applications

  • Fully automatic water supply and pressure boosting in inlet mode, either from the public water supply network or from a tank, for domestic, commercial, industrial and municipal applications (e.g. residential, office, administration buildings, hotels, hospitals, trades, industry, water supply companies)
  • Pumping drinking water, process water, cooling water or other industrial water, which does not affect the materials used, neither chemically nor mechanically, and does not have any abrasive or long-fibre constituents

Features

  • High operational reliability, thanks to system with one, two or three horizontal multistage CH1-L pumps with stainless steel hydraulics
  • Easy installation and maintenance thanks to spey cial, flexibly adjustable connections to manifolds p
  • Easy commissioning and operation with the Easy re Controller a
  • Drinking water approval (ACS and KTW) for pumps with components made of stainless steel that come into contact with the fluid

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo Economy CO-1 Medana CH1-L 605-CE+ Pressure Booster Set?

The Wilo Economy CO-1 Medana CH1-L 605-CE+ Pressure Booster Set has a maximum head of 59 m.

How much water can the Wilo Economy CO-1 Medana CH1-L 605-CE+ Pressure Booster Set pump?

The Wilo Economy CO-1 Medana CH1-L 605-CE+ Pressure Booster Set pumps up to 10 m³/h.
