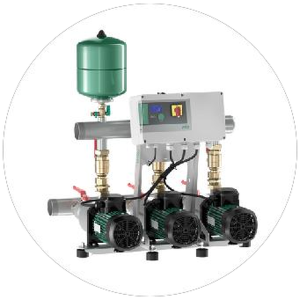

Wilo Vario Boost CO-1 Medana CH1-L 605-MT Pressure Booster Set – 230V (VSD)
19148
The Wilo Vario Boost CO-1 Medana CH1-L 605-MT is a variable-speed pressure boosting system from the Wilo Vario Boost Medana MT range. Pressure-boosting system with two or three non-selfpriming stainless steel high-pressure multistage centrifugal pumps switched in parallel. Supplied as a factory-assembled set with 1 pump(s).
At a glance
Max. head: 59 mMax. flow: 10 m³/hSupply: 230 V single-phaseSpecifications
| Brand | Wilo |
| Item code | 2804113A |
| Model | Vario Boost CO-1 Medana CH1-L 605-MT |
| Supply | 230 V single-phase |
| Series | Wilo Vario Boost Medana MT |
| Type | variable-speed pressure boosting system |
| Number of pumps | 1 |
Performance Table
| Flow (m³/h) | 0.6 | 2 | 4 | 6 | 8 | 10 |
|---|---|---|---|---|---|---|
| Head (m) | 59 | 58 | 54.5 | 48.7 | 38.7 | 21.1 |
| Shaft power P2 (kW) | 0.75 | 0.94 | 1.22 | 1.43 | 1.55 | 1.53 |
| Hydraulic efficiency (%) | 15 | 37 | 52 | 59 | 57 | 40 |
| NPSH required (m) | 2.39 | 2.92 | 1.61 | 1.56 | 4.65 | 9.93 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Vario Boost CO-1 Medana CH1-L 605-MT Pressure Booster Set (VSD):
Wilo Medana CH1-L 605 Performance Curve (50 Hz)
29 kB | Download
Applications
- Fully automatic water supply and pressure boosting in inlet mode, either from the public water supply network or from a tank, for domestic, commercial, industrial and municipal applications (e.g. residential, office, administration buildings, hotels, hospitals, trades, industry, water supply companies)
- Pumping drinking water, process water, cooling water or other industrial water, which does not affect the materials used, neither chemically nor mechanically, and does not have any abrasive or long-fibre constituents
Features
- High operational reliability, thanks to system with one, two or three horizontal multistage CH1-L pumps with stainless steel hydraulics
- Easy installation and maintenance thanks to special, flexibly adjustable connections to manifolds
- Easy commissioning and operation with the Easy Controller
- Drinking water approval (ACS and KTW) for pumps with components made of stainless steel that come into contact with the fluid
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Vario Boost CO-1 Medana CH1-L 605-MT Pressure Booster Set (VSD)?
The Wilo Vario Boost CO-1 Medana CH1-L 605-MT Pressure Booster Set (VSD) has a maximum head of 59 m.
How much water can the Wilo Vario Boost CO-1 Medana CH1-L 605-MT Pressure Booster Set (VSD) pump?
The Wilo Vario Boost CO-1 Medana CH1-L 605-MT Pressure Booster Set (VSD) pumps up to 10 m³/h.
