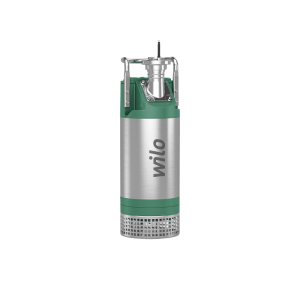

Wilo Padus PRO M08/T060-540/P / 6kW Submersible Drainage Pump
19240
The Wilo Padus PRO M08/T060-540/P is a submersible drainage pump from the Wilo Padus PRO range with a 6 kW motor rating, delivering up to 80.0 m³/h at a maximum head of 34.7 m. Submersible drainage pump.
At a glance
Power: 6 kWSupply: ±10 %Max. head: 35 mMax. flow: 79.96 m³/hConnections: Storz BBest for: Pumping of, Wastewater, Process waterSpecifications
| Brand | Wilo |
| Item code | 6083438 |
| Model | Padus PRO M08/T060-540/P |
| Series | Wilo Padus PRO |
| Type | submersible drainage pump |
| Discharge side | Storz B |
| Rated power P2 | 6 kW |
| Connection cable length | 23 m |
| Mains connection | 3~400 V, 50 Hz |
| Maximum operating pressure p | 3.8 bar |
| Discharge port | Storz B |
| Free ball passage of the hydraulics | 10 mm |
| Hydraulics type | Open multi-channel impeller |
| Max. immersion depth | 20 m |
| Max. delivery head Hmax | 34.7 m |
| Max. volume flow Qmax | 80.0 m³/h |
| Min. fluid temperature Tmin | 3 °C |
| Max. fluid temperature Tmax | 40 °C |
| Min. ambient temperature Tmin | 3 °C |
| Max. ambient temperature Tmax | 40 °C |
| Voltage tolerance | ±10 % |
| Power factor cos φ100 | 0.86 |
| Rated power P2 | 6 kW |
| Power consumption P1 max | 6.90 kW |
| Rated current IN | 11.6 A |
| Starting current I | 90 A |
| Activation type | Direct On Line (DOL) |
| Rated speed n | 2910 1/min |
| Max. switching frequency t | 20 rph |
| Insulation class | H |
| Protection class | IP68 |
| Operating mode (immersed) | S1 |
| Pump housing | Aluminium |
| Impeller | Stainless steel |
| Pipe connection, discharge side DNd | Storz B |
| Connection cable length L | 23 m |
| Float switch | no |
| Maximum operating pressure PN | 4 bar |
| Dimensions (W × L × H) | 34.5 × 116.6 × 35 cm |
| Weight | 76 kg |
Performance Table
| Flow (m³/h) | 0.01 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 79.96 |
|---|---|---|---|---|---|---|---|---|---|
| Head (m) | 35 | 32.1 | 28.9 | 25.6 | 22.5 | 19.3 | 15.2 | 9.55 | 0.95 |
| Shaft power P2 (kW) | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Hydraulic efficiency (%) | 103 | 64 | 40 | 27 | 22 | 21 | 26 | 37 | 57 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Padus PRO M08/T060-540/P:
Wilo Padus PRO M08/T060-540/P Performance Curve (50 Hz)
28 kB | Download
Applications
- Pumping of
- Wastewater
- Process water
Features
- High reliability in abrasive fluids thanks to rubbercoated hydraulics and an impeller made of Duplex chrome steel
- Easy installation thanks to low weight and flexible discharge connection (vertical/horizontal)
- Active cooling for reliable continuous operation
- Continuous duty in slurping operation thanks to passive cooling
- Easy maintenance thanks to quick access to wearing parts
- Equipped with energy-efficient IE3 motor technology as standard
- Highest operational reliability thanks to integrated protection function
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 777 mm |
| Width W | 260 mm |
| Height H | 260 mm |
| Net weight (approx.) | 72 kg |
| Gross weight (approx.) | 76 kg |
| Length with packaging | 1166 mm |
| Width with packaging | 345 mm |
| Height with packaging | 350 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Padus PRO M08/T060-540/P?
The Wilo Padus PRO M08/T060-540/P has a maximum head of 35 m.
How much water can the Wilo Padus PRO M08/T060-540/P pump?
The Wilo Padus PRO M08/T060-540/P pumps up to 79.96 m³/h.
What power supply does the Wilo Padus PRO M08/T060-540/P need?
Supply: ±10 %. Motor power: 6 kW.
What are the pipe connections of the Wilo Padus PRO M08/T060-540/P?
Storz B.
