Wilo Rexa PRO-V05-323A/20T068X540/O / 6.75kW Submersible Sewage Pump

R 63,882.50 incl. VATAdd to Basket

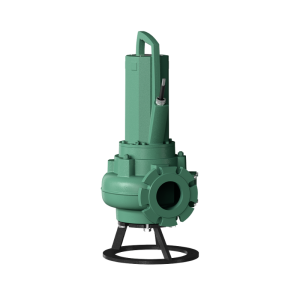

Wilo Rexa PRO-V05-323A/20T068X540/O / 6.75kW Submersible Sewage Pump image 1

The Wilo Rexa PRO-V05-323A/20T068X540/O is a submersible sewage pump from the Wilo Rexa PRO range with a 6.75 kW motor rating, delivering up to 57.6 m³/h at a maximum head of 37.4 m. Submersible sewage pump for continuous duty for stationary and portable wet well installation, as well as for stationary dry well installation.

At a glance

Power: 6.75 kWSupply: ±10 %Max. head: 37.7 mMax. flow: 7.42 m³/hConnections: DN 50Best for: Pumping of, Untreated sewage, Sewage containing faeces in accordance with (DIN) EN 12050-1

Specifications

BrandWilo
Item code6082575
ModelRexa PRO-V05-323A/20T068X540/O
SeriesWilo Rexa PRO
Typesubmersible sewage pump
Pressure portDN 50
Rated power P26.75 kW
Explosion protection (ATEX)yes
Mains connection3~400 V, 50Hz
Free ball passage50 mm
Maximum operating pressure p4.1 bar
Discharge portDN 50
Free ball passage of the hydraulics50 mm
Hydraulics typeVortex impeller
Max. immersion depth20 m
Max. delivery head Hmax37.4 m
Max. volume flow Qmax57.6 m³/h
Min. fluid temperature Tmin3 °C
Max. fluid temperature Tmax40 °C
Min. ambient temperature Tmin3 °C
Max. ambient temperature Tmax40 °C
Motor designSubmersible motor – surface-cooled
Voltage tolerance±10 %
Power factor cos φ1000.89
Rated power P26.75 kW
Power consumption P1 max7.90 kW
Rated current IN12.8 A
Starting current I26 A
Activation typeStar-Delta (YΔ)
Number of poles2
Rated speed n2883 1/min
Max. switching frequency t15 rph
Insulation classH
Protection classIP68
Pump housingGrey cast iron
Pipe connection, suction side DNsDN 50
Connection cable length L10 m
Float switchno
Maximum operating pressure PN4 bar
Dimensions (W × L × H)60 × 80 × 83 cm
Weight80 kg

Performance Table

Flow (m³/h)0.0112345677.42
Head (m)37.737.236.836.53635.635.334.934.7
Shaft power P2 (kW)––––––––21.08
Hydraulic efficiency (%)––––––––-16
NPSH required (m)0.784.467.81113.916.71921.222.1

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Rexa PRO-V05-323A/20T068X540/O:



Wilo Rexa PRO-V05-323A/20T068X540/O Performance Curve (50 Hz)

29 kB  |  Download

Applications

  • Pumping of
  • Untreated sewage
  • Sewage containing faeces in accordance with (DIN) EN 12050-1
  • Wastewater

Features

  • Highly effective. Thanks to efficiency-optimized single-channel impellers
  • Safe to operate due to low-clogging vortex impellers
  • Verified safety: Ex-rated in accordance with ATEX as standard
  • Energy-efficient IE3 motor technology available as an option

Dimensions & Weight

DimensionValue
Length L326 mm
Width W274 mm
Height H588 mm
Net weight (approx.)78 kg
Gross weight (approx.)80 kg
Length with packaging800 mm
Width with packaging600 mm
Height with packaging830 mm

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo Rexa PRO-V05-323A/20T068X540/O?

The Wilo Rexa PRO-V05-323A/20T068X540/O has a maximum head of 37.7 m.

How much water can the Wilo Rexa PRO-V05-323A/20T068X540/O pump?

The Wilo Rexa PRO-V05-323A/20T068X540/O pumps up to 7.42 m³/h.

What power supply does the Wilo Rexa PRO-V05-323A/20T068X540/O need?

Supply: ±10 %. Motor power: 6.75 kW.

What are the pipe connections of the Wilo Rexa PRO-V05-323A/20T068X540/O?

DN 50.
