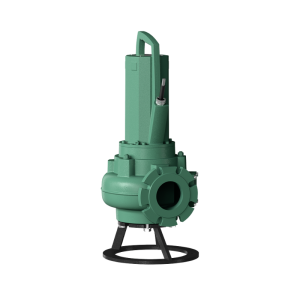

Wilo Rexa PRO-V05-328A/20T105X540/O / 10.5kW Submersible Sewage Pump
19280
The Wilo Rexa PRO-V05-328A/20T105X540/O is a submersible sewage pump from the Wilo Rexa PRO range with a 10.5 kW motor rating, delivering up to 61.2 m³/h at a maximum head of 52.4 m. Submersible sewage pump for continuous duty for stationary and portable wet well installation, as well as for stationary dry well installation.
At a glance
Power: 10.5 kWSupply: ±10 %Max. head: 52.8 mMax. flow: 7.71 m³/hConnections: DN 50Best for: Pumping of, Untreated sewage, Sewage containing faeces in accordance with (DIN) EN 12050-1Specifications
| Brand | Wilo |
| Item code | 6082579 |
| Model | Rexa PRO-V05-328A/20T105X540/O |
| Series | Wilo Rexa PRO |
| Type | submersible sewage pump |
| Pressure port | DN 50 |
| Rated power P2 | 10.5 kW |
| Explosion protection (ATEX) | yes |
| Mains connection | 3~400 V, 50Hz |
| Free ball passage | 50 mm |
| Maximum operating pressure p | 5.8 bar |
| Discharge port | DN 50 |
| Free ball passage of the hydraulics | 50 mm |
| Hydraulics type | Vortex impeller |
| Max. immersion depth | 20 m |
| Max. delivery head Hmax | 52.4 m |
| Max. volume flow Qmax | 61.2 m³/h |
| Min. fluid temperature Tmin | 3 °C |
| Max. fluid temperature Tmax | 40 °C |
| Min. ambient temperature Tmin | 3 °C |
| Max. ambient temperature Tmax | 40 °C |
| Motor design | Submersible motor – surface-cooled |
| Voltage tolerance | ±10 % |
| Power factor cos φ100 | 0.87 |
| Rated power P2 | 10.5 kW |
| Power consumption P1 max | 12.30 kW |
| Rated current IN | 20.5 A |
| Starting current I | 57 A |
| Activation type | Star-Delta (YΔ) |
| Number of poles | 2 |
| Rated speed n | 2914 1/min |
| Max. switching frequency t | 15 rph |
| Insulation class | H |
| Protection class | IP68 |
| Pump housing | Grey cast iron |
| Pipe connection, suction side DNs | DN 50 |
| Connection cable length L | 10 m |
| Float switch | no |
| Maximum operating pressure PN | 6 bar |
| Dimensions (W × L × H) | 60 × 80 × 83 cm |
| Weight | 120 kg |
Performance Table
| Flow (m³/h) | 0.02 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 7.71 |
|---|---|---|---|---|---|---|---|---|---|
| Head (m) | 52.8 | 52.4 | 52 | 51.6 | 51 | 50.6 | 50.2 | 49.7 | 49.5 |
| Shaft power P2 (kW) | – | – | – | – | – | – | – | – | 129.54 |
| Hydraulic efficiency (%) | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 5 | 5 |
| NPSH required (m) | – | – | – | – | – | – | – | – | 17 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Rexa PRO-V05-328A/20T105X540/O:
Wilo Rexa PRO-V05-328A/20T105X540/O Performance Curve (50 Hz)
28 kB | Download
Applications
- Pumping of
- Untreated sewage
- Sewage containing faeces in accordance with (DIN) EN 12050-1
- Wastewater
Features
- Highly effective. Thanks to efficiency-optimized single-channel impellers
- Safe to operate due to low-clogging vortex impellers
- Verified safety: Ex-rated in accordance with ATEX as standard
- Energy-efficient IE3 motor technology available as an option
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 326 mm |
| Width W | 274 mm |
| Height H | 669 mm |
| Net weight (approx.) | 118 kg |
| Gross weight (approx.) | 120 kg |
| Length with packaging | 800 mm |
| Width with packaging | 600 mm |
| Height with packaging | 830 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Rexa PRO-V05-328A/20T105X540/O?
The Wilo Rexa PRO-V05-328A/20T105X540/O has a maximum head of 52.8 m.
How much water can the Wilo Rexa PRO-V05-328A/20T105X540/O pump?
The Wilo Rexa PRO-V05-328A/20T105X540/O pumps up to 7.71 m³/h.
What power supply does the Wilo Rexa PRO-V05-328A/20T105X540/O need?
Supply: ±10 %. Motor power: 10.5 kW.
What are the pipe connections of the Wilo Rexa PRO-V05-328A/20T105X540/O?
DN 50.
