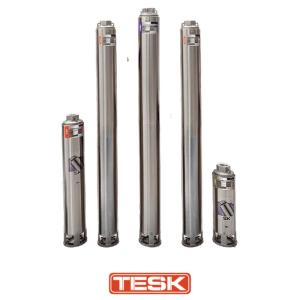

Tesk 4SK8/21 Borehole Pump Kit – 4kW 400V (pump end and 400V motor)
19778
Complete 4” borehole pump kit: a Tesk 4SK8/21 4” pump end, a 4 kW 400V oil-filled submersible motor (three phase – run from a starter or solar pump inverter) – everything below ground except the pipe and cable. Nominal flow 8 m³/h, 21 stages. Maximum head about 132 m.
Special offer: reduced price while stock lasts.
At a glance
Power: 4 kWSupply: 400 VMax. head: 132 mMax. flow: 12 m³/hBest for: Groundwater and well pumping, Residential and municipal water supply, Pressure systems and pipeline pressurisationSpecifications
| Brand | Tesk |
| Weight | 28.5 kg |
| Motor power | 4 kW |
| Voltage | 400 V |
| Item code | KIT-6013052 |
Performance Table
| Flow Q (m³/h) | 0 | 7.2 | 7.8 | 8.4 | 9 | 9.6 | 12 |
|---|---|---|---|---|---|---|---|
| Head H (m) | 132 | 103 | 98 | 93 | 88 | 82 | 52 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Tesk 4SK8/21 Borehole Pump Kit:
Tesk 4SK8 Performance Curves
136 kB | Download
Tesk 4SK8 Technical Data
393 kB | Download
Applications
- Groundwater and well pumping
- Residential and municipal water supply
- Pressure systems and pipeline pressurisation
- Spray irrigation
- Fire protection and cooling circulation
Specifications – what is in the kit
| Parameter | Value |
|---|---|
| Brand | Tesk |
| Kit code | KIT-6013052 |
| Pump end | 4SK8/21 (6013052) |
| Motor | Tesk 4” Oil-Filled Submersible Motor 4kW 400V 3-Phase (6022008) |
| Nominal flow | 8 m³/h |
| Number of stages | 21 |
| Motor power | 4 kW (5.5 HP) |
| Supply | 400V three phase |
| Maximum head | 132 m |
| Outlet | 50 mm (2") |
| Assembled length | 1466 mm |
| Shipping mass (approx.) | 28.5 kg |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Tesk 4SK8/21 Borehole Pump Kit?
The Tesk 4SK8/21 Borehole Pump Kit has a maximum head of 132 m.
How much water can the Tesk 4SK8/21 Borehole Pump Kit pump?
The Tesk 4SK8/21 Borehole Pump Kit pumps up to 12 m³/h.
What power supply does the Tesk 4SK8/21 Borehole Pump Kit need?
Supply: 400 V. Motor power: 4 kW.
