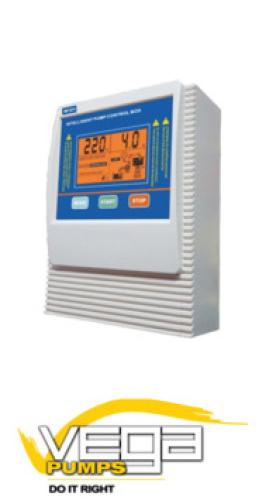

Vega C/Box Protect 0.75kW (220V) » Buy online now for only R 2,218.73 incl. VAT
14513
Description
The M521 digital controller is suitable for controlling 220v pump motors between 0.37kw and 2.2kw and features an IP22 enclosure. The H931 digital starter will protect the motor in the following scenarios: Dry run, overload, transient surge, under and over voltage, pump stall, and short circuit. The M521 digital controller has a large LCD display for showing the current status of the pump as well as additional info such as the accumulative running time and the last five faults logged by the controller.
Application
- Liquid level control for supply (borehole) and delivery (storage).
- Enabled for operation, utilizing floating level switch / liquid level probe / pressure switch.
- Over / under voltage protection with adjustable parameters.
- Auto / Manual operation.
- Dynamic and interactive LCD display.
- Push Button Calibration
- Pump Accumulative Running Time Display
- Pump Last Five Fault condition Recording
- Controller enabled for operation with single phase motor fitted with internal or external capacitor from 0.18 to 2.2kw.
- Capacitor to be retro fitted for borehole motor use.
Specification
- Type of motor: Single phase motor
- Motor power: 0.37-2.2kW
- Voltage: 220V
- Frequency: 50Hz
Construction characteristics
- Grade protection: IP22
- Environment temperature: -25°C to +55°C
- Environment humidity: (20-90)%RH
