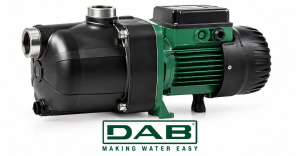

DAB Jetcom 82 M / 0.6KW 230V Self-Priming Centrifugal Jet Pump

R 1,921.17 incl. VATAdd to Basket

The DAB Jetcom 82 M is a self-priming centrifugal jet pump built for domestic water supply. It draws water from a well, tank, river or dam up to 8 metres below the pump and primes reliably even when air is present in the suction line. It is rated at 0.6 kW (0.8 HP) on 1 x 220-240 V ~ 50 Hz, delivering a maximum flow of 3.6 m³/h and a maximum head of 47 m.

Applications

Domestic water supply and household pressure boosting
Drawing from wells, tanks, rivers and dams up to 8 m suction depth
Small farms, smallholdings and gardening
Garden irrigation and sprinkler systems
Small-scale industrial services where self-priming is necessary

Pump Construction

Self-priming design with excellent suction capacity, even with air bubbles present
Handles water with low levels of sandy impurities
Pump body in technopolymer with die-cast aluminium motor support
Impeller, diffuser, venturi tube and sand guard in technopolymer
Stainless steel wear ring
Carbon / ceramic mechanical seal

Motor Construction

Asynchronous, closed, with external air cooling
Rotor on oversized greased-for-life ball bearings for low noise and long life
Built-in thermo-amperometric overload protection
Permanently inserted capacitor (single phase)
Manufactured to CEI 2-3 and CEI 61-69 (EN 60335-2-41)

Materials in Contact with the Liquid

Component	Material
Pump body	Technopolymer A
Impeller	Technopolymer A
Venturi / diffuser / nozzle group	Technopolymer A
Shaft with rotor	AISI 416 stainless steel (X12 CrS13)
Mechanical seal	Carbon / ceramic
Seal holder cover	AISI 304 stainless steel (X5 CrNi 1810)
O-ring gasket	NBR rubber

Specifications

Parameter	Value
Model	DAB Jetcom 82 M
Pump type	Self-Priming Centrifugal Jet Pump
Power supply	1 x 220-240 V ~ 50 Hz
Absorbed power P1 max	0.85 kW
Nominal power P2	0.6 kW (0.8 HP)
Rated current	3.8 A
Capacitor	12.5 µF / 450 V
Maximum head	47 m
Maximum flow	3.6 m³/h
Suction port (DNA)	1" GAS
Discharge port (DNM)	1" GAS
Liquid temperature range	0 °C to +35 °C (domestic use, EN 60335-2-41)
Maximum ambient temperature	+40 °C
Maximum operating pressure	6 bar (600 kPa)
Maximum suction depth	8 metres
Motor protection rating	IP 44
Terminal block protection rating	IP 55
Insulation class	F
Installation	Fixed, horizontal position
Pump gross weight	7.7 kg

Performance

Flow Q (m³/h)	0	0.6	1.2	1.8	2.4	3.0	3.6
Head H (m)	47	40	34	30	26.2	23.5	20

Performance curves are based on kinematic viscosity of 1 mm²/s and density of 1000 kg/m³. Curve tolerance to ISO 9906.
