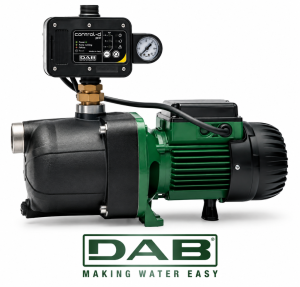

DAB Jetcom 82 Auto / 0.6KW 230V Self-Priming Centrifugal Jet Pump With Automatic Pump Controller
15897
The DAB Jetcom 82 Auto is a self-priming centrifugal jet pump built for domestic water supply. It draws water from a well, tank, river or dam up to 8 metres below the pump and primes reliably even when air is present in the suction line. It is rated at 0.6 kW (0.8 HP) on 1 x 220-240 V ~ 50 Hz, delivering a maximum flow of 3.6 m³/h and a maximum head of 47 m.
This version is supplied fitted with an automatic pump controller (press control), which starts the pump the moment a tap is opened and stops it when flow ceases. It replaces a pressure vessel and pressure switch, and protects the pump by shutting it down if the water supply runs dry.
At a glance
Power: 1 x 220-240 V ~ 50 HzSupply: 1 x 220-240 V ~ 50 HzMax. head: 47 mMax. flow: 3.6 m³/h (60 l/min)Connections: 1" GASSpecifications
| Brand | DAB |
| Model | DAB Jetcom 82 M + Automatic Pump Controller |
| Pump type | Self-Priming Centrifugal Jet Pump |
| Power supply | 1 x 220-240 V ~ 50 Hz |
| Absorbed power P1 max | 0.85 kW |
| Nominal power P2 | 0.6 kW (0.8 HP) |
| Rated current | 3.8 A |
| Capacitor | 12.5 µF / 450 V |
| Maximum head | 47 m |
| Maximum flow | 3.6 m³/h |
| Suction port (DNA) | 1" GAS |
| Discharge port (DNM) | 1" GAS |
| Liquid temperature range | 0 °C to +35 °C (domestic use, EN 60335-2-41) |
| Maximum ambient temperature | +40 °C |
| Maximum operating pressure | 6 bar (600 kPa) |
| Maximum suction depth | 8 metres |
| Motor protection rating | IP 44 |
| Terminal block protection rating | IP 55 |
| Insulation class | F |
| Installation | Fixed, horizontal position |
| Pump gross weight | 7.7 kg |
| Dimensions (W × L × H) | 24 × 47 × 30 cm |
| Item code | JETCOM82M(220V)-AUTO |
Performance Table
| Flow Q (m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 |
|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 |
| Head H (m) | 47 | 40 | 34 | 30 | 26.2 | 23.5 | 20 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the DAB Jetcom 82 Auto:
DAB Jetcom 82 M / 102 M Self-Priming Jet Pumps – Performance Curves and Technical Data
10 kB | Download
Applications
- Domestic water supply and household pressure boosting
- Drawing from wells, tanks, rivers and dams up to 8 m suction depth
- Small farms, smallholdings and gardening
- Garden irrigation and sprinkler systems
- Small-scale industrial services where self-priming is necessary
Pump Construction
- Self-priming design with excellent suction capacity, even with air bubbles present
- Handles water with low levels of sandy impurities
- Pump body in technopolymer with die-cast aluminium motor support
- Impeller, diffuser, venturi tube and sand guard in technopolymer
- Stainless steel wear ring
- Carbon / ceramic mechanical seal
Motor Construction
- Asynchronous, closed, with external air cooling
- Rotor on oversized greased-for-life ball bearings for low noise and long life
- Built-in thermo-amperometric overload protection
- Permanently inserted capacitor (single phase)
- Manufactured to CEI 2-3 and CEI 61-69 (EN 60335-2-41)
Automatic Pump Controller
- Starts the pump automatically when a tap or outlet is opened
- Stops the pump automatically once flow ceases
- Dry-run protection shuts the pump down if the water supply fails
- Built-in non-return valve prevents backflow
- Removes the need for a pressure vessel and separate pressure switch
- LED indication of power, pump running and fault status
- Manual restart after a dry-run trip
Materials in Contact with the Liquid
| Component | Material |
|---|---|
| Pump body | Technopolymer A |
| Impeller | Technopolymer A |
| Venturi / diffuser / nozzle group | Technopolymer A |
| Shaft with rotor | AISI 416 stainless steel (X12 CrS13) |
| Mechanical seal | Carbon / ceramic |
| Seal holder cover | AISI 304 stainless steel (X5 CrNi 1810) |
| O-ring gasket | NBR rubber |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the DAB Jetcom 82 Auto?
The DAB Jetcom 82 Auto has a maximum head of 47 m.
How much water can the DAB Jetcom 82 Auto pump?
The DAB Jetcom 82 Auto pumps up to 3.6 m³/h (60 l/min).
What power supply does the DAB Jetcom 82 Auto need?
Supply: 1 x 220-240 V ~ 50 Hz. Motor power: 1 x 220-240 V ~ 50 Hz.
What are the pipe connections of the DAB Jetcom 82 Auto?
1" GAS.
