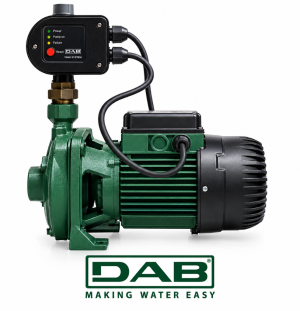

DAB K 35/100 Auto / 1.1KW 230V Twin-Impeller Centrifugal Pump With Automatic Pump Controller
15901
The DAB K 35/100 Auto is a twin-impeller centrifugal pump built for pressurisation and general water supply. Two impellers in series produce noticeably more head than a single-impeller pump of the same power, in a robust cast iron casing. It is rated at 1.1 kW (1.5 HP) on 1 x 220-240 V ~ 50 Hz, delivering a maximum flow of 7.2 m³/h and a maximum head of 38.5 m.
This version is supplied fitted with an automatic pump controller (press control), which starts the pump the moment a tap is opened and stops it when flow ceases. It replaces a pressure vessel and pressure switch, and protects the pump by shutting it down if the water supply runs dry.
Applications
- Pressurisation units in water systems
- Filling of pressure vessels and tanks
- Sprinkler and irrigation systems
- General water supply in domestic, civil and industrial environments
- Booster duty where steady pressure at moderate flow is required
Pump Construction
- Twin-impeller design for higher head than a comparable single-impeller pump
- Pump body and motor support in cast iron for durability and quiet running
- Technopolymer impellers
- Carbon / ceramic mechanical seal
- Install horizontal or vertical, provided the motor is always above the pump
Motor Construction
- Closed asynchronous type with external ventilation cooling
- Rotor on permanently lubricated, oversized ball bearings for low noise and durability
- Standard built-in thermo-amperometric protection
- Capacitor permanently fitted on single phase versions
- Construction according to CEI 2-3
Automatic Pump Controller
- Starts the pump automatically when a tap or outlet is opened
- Stops the pump automatically once flow ceases
- Dry-run protection shuts the pump down if the water supply fails
- Built-in non-return valve prevents backflow
- Removes the need for a pressure vessel and separate pressure switch
- LED indication of power, pump running and fault status
- Manual restart after a dry-run trip
Materials in Contact with the Liquid
| Component | Material |
|---|---|
| Pump body | Cast iron 200 UNI ISO 185 |
| Motor support | Cast iron 200 UNI ISO 185 |
| Impeller | Technopolymer A |
| Shaft with rotor | AISI 303 stainless steel (X10 CrNiS 1089) |
| Mechanical seal | Carbon / ceramic |
| Gasket | NBR rubber |
Specifications
| Parameter | Value |
|---|---|
| Model | DAB K 35/100 M + Automatic Pump Controller |
| Pump type | Twin-Impeller Centrifugal Pump |
| Power supply | 1 x 220-240 V ~ 50 Hz |
| Absorbed power P1 max | 1.56 kW |
| Nominal power P2 | 1.1 kW (1.5 HP) |
| Rated current | 7.1 A |
| Capacitor | 25 µF / 450 V |
| Speed | 2780 rpm |
| Starting current | 33 A |
| Maximum head | 38.5 m |
| Maximum flow | 7.2 m³/h |
| Suction port (DNA) | 1½" G |
| Discharge port (DNM) | 1" G |
| Liquid temperature range | -10 °C to +50 °C |
| Maximum ambient temperature | +40 °C |
| Maximum operating pressure | 6 bar (600 kPa) |
| Protection class | IP 44 |
| Terminal board protection class | IP 55 |
| Insulation class | F |
| Installation | Fixed, horizontal or vertical (motor above pump) |
| Pump gross weight | 22.0 kg |
Performance
| Flow Q (m³/h) | 0 | 1.2 | 1.8 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 |
|---|---|---|---|---|---|---|---|---|
| Head H (m) | 38.5 | 37.5 | 36.5 | 35 | 32 | 28.5 | 18.5 | 17.5 |
Performance curves are based on kinematic viscosity of 1 mm²/s and density of 1000 kg/m³. Curve tolerance to ISO 9906.
